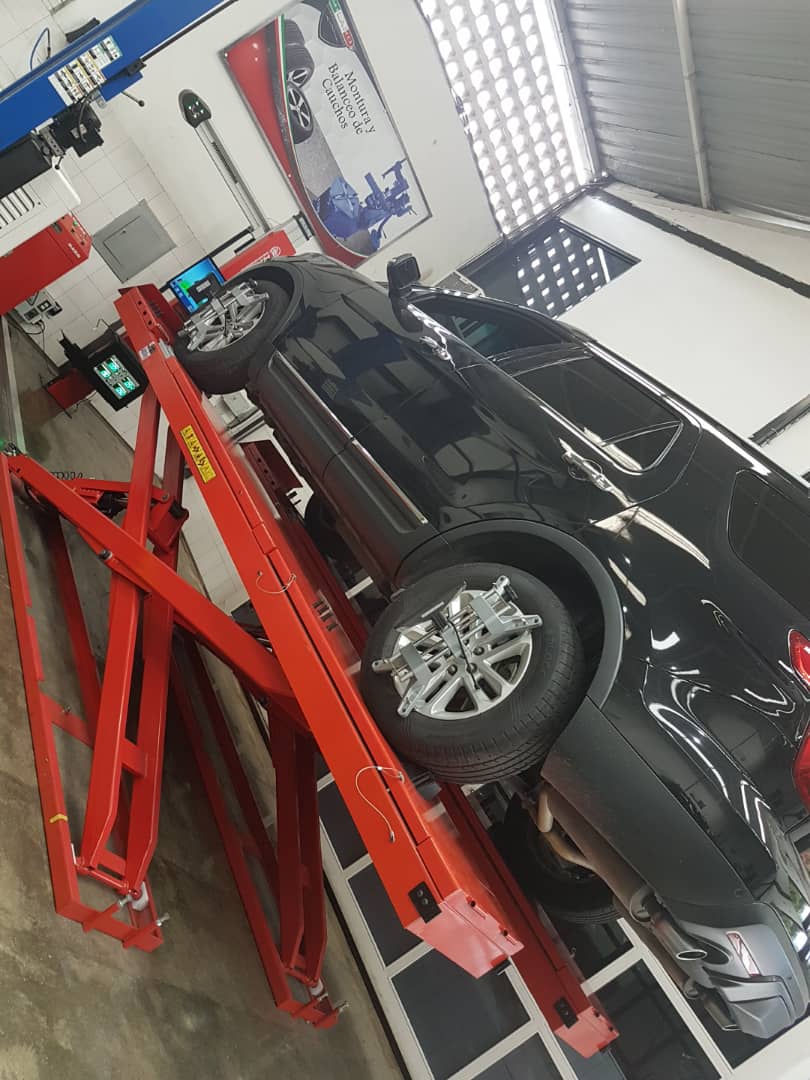

3.5T inground Alignment Scissor car Lift
Scissor lift is designed to maximize your workshop and make easier to work all around being serviced vehicle without obstacles.
Electro-hydraulic power system.
Easy operation, just press push button of control cabinet to raise and lower.
Pneumatic safety teeth get into working position automatically, when you release push button.
Step by step operation and installation manual shipped with each unit.
Power supply: 220V/50HZ, Single phase, 380V/50HZ, three phase.
Lifting Capacity: 3500kg to 4000kg
Lifting Height: 2160mm
Runways length: 4000mm
Runways Width: 610mm
Jack Height: 450mm
Motor power: 2.2KW
Rated oil Pressure: 22Mpa .
Air Source Pressure: 6-8kg/cm2
Power Supply: 220/380V, 50/60HZ.
