Medicinal Sugar Coating Machine Sugar Tablet coating machine
Home
Medicinal Sugar Coating Machine Sugar Tablet coating machine

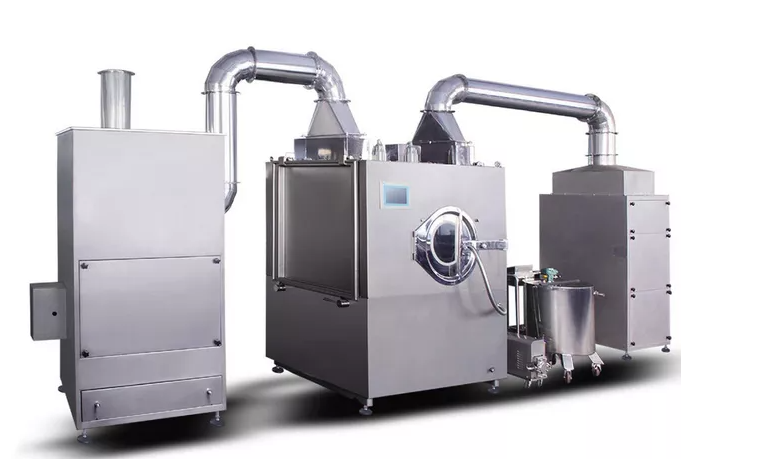

Medicinal Sugar Coating Machine Sugar Tablet coating machine

$10000~$30000
Min.Order 1   Set / Sets
Min. Order: 1
:
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
VR link:
Quality certification:
  • Country of origin:
  • Brand:
  • HS code:
  • Yield:
  • Type of shipping:
  • Port of shipment:
  • Supply capacity:
  • Packing method:
Product Details
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel
Application:
Food, Medical, Chemical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Packaging Type:
Wooden
Packaging Material:
Wood
Place of Origin:
 China
Brand Name:
tablet coating machine
Dimension(L*W*H):
2050*780*2500mm
Weight:
500 KG
Warranty:
1 Year
Key Selling Points:
Competitive Price
Loading Capacity (kg/batch):
40kg
Diameter of coating drum:
780mm
Drum Revolution:
2.0-18 rpm
Air exhaust flow:
3517 m3/h
Main Machine Power:
1.1KW
PPower of air exhaust cabinet motor:
2.2kw
Power of hot air cabinet motor:
7.5KW
Hot air flow:
1285 m3/h
Weight of main machine:
500kg
name:
tablet coating machine
Applications It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc.
Characteristic:
 1. All operations can be finished through pushing the touch key on the computer-controlled panel. The operational panel is a full-sealed slight touch film interface. The main machine has reliable and stable performance.
2. The streamline guiding-type mixer drives tablets to make easy and smooth rotation without fragment and chipped edge, which improves the quality of finished products.
3. Automatic feeding device stopped the cross pollution, convenient to feed, with high efficiency and full direction. The coating boiler equipped in the high pressure spray gun, which can rotate 1800, there set a cleaning sprayer at the air exhaust exit and hot air mouth, which can be rotated in automatic and full direction, without dead corner more convenient to clean.
4. Select the imported Japan ANEST IWATA spray gun. It's convenient to operate and easy to master and flexible controlled technological requirement. The spray gun head requirement must keep in the range of 0.29 MPa to 0.39 MPa.
5. Angle and sector can be adjustable, uniform density and particle in spray pressure and 0.4-0.5MPa in atomization pressure that avoid the dropping leakage and blockage phenomenon of size, uniform atomization and large spray area, practical to adjust flow, free leakage and blockage, angle and sector.
6. Film coating machine contains the mechanical device of cauldron wrapping little material can coat at least 20kg plain pills in 150 type coating machine, regulate through it inherent machinery, make a small mount of medium coat in cauldron and will not cause the wasted of dressing and greatly improve the scope of appliance.
