MODEL
|

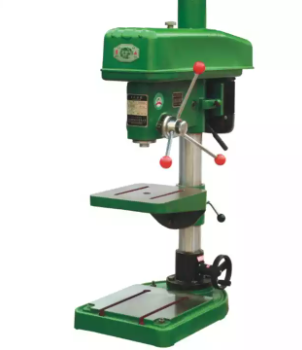

JZB4020(L)
|
|
Max.Drilling capacity
|
mm
|
20/16
|
Diameter of column
|
mm
|
85
|
Max.spindle travel
|
mm
|
Manual 110/automatic 90
|
Morse taper of spindle nose
|
MT.2
|
|
Spindle speeds
|
r/min
|
230-390-680-1230
|
Spindle feed range
|
mm/min
|
0-110 (stepless speed regulation)
|
Size of worktable
|
mm
|
-
|
Size of base worktable
|
mm
|
335*335
|
Distance from spindle axis to column surface
|
mm
|
242.5
|
Distance from spindie nose to worktable
|
mm
|
-
|
Distance trom spindle nose to base surface
|
mm
|
210-410
|
Motor
|
kw
|
0.75 (6 poles)
|
G.W/N.W
|
kg
|
160/140
|
Ship measurement
|
cm
|
86*52.6*89.3
|
