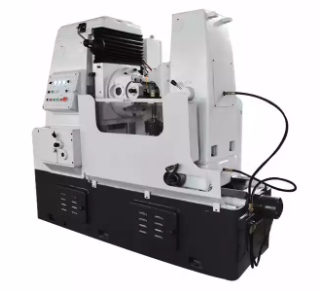

Gear universal hobbing machine cutting

$12000~$16000

Min.Order 1 Set / Sets

Min. Order: 1

Contact Supplier

Favorite

Inquiry Basket

Product Attributes

Company Profile

Logistics and other information

VR link:

Quality certification:

Country of origin:
Brand:
HS code:
Yield:

Type of shipping:
Port of shipment:
Supply capacity:
Packing method:

Product Details

Product main technical Specifications:

Main technical parameters			Y3150E
Max working module	steel (mm)	6
	Cast iron(mm)	8
Max diameter of workpieces	With rear column (mm)	350
	Without rear column (mm)	500
Machining width			250 mm
Max diameter and length of hob			160/160mm
The diameter of worktable			510mm
Speed of main spindle	Grade	9
	Range (r/min)	40-250RPM
maximum axial movement of hob			55mm
Main motor power			4kw/1500rpm
Main spindle taper hole			Morse No.5
The distance from hob center to worktable			200-535mm
The distance from hob center to worktable center			20-330mm
The distance from out support end face to worktable surface			380-700mm
Worktable hole			80mm
Max.swing over cross slide			60°
Diameter of cutter arbor			22 27 32 mm
Workpiece mandrel diameter			30mm
Machine size			245012721790mm
Gross weight/net weight			5300/4500 kg

We welcome customized machine , could provide tangential cutter head,processing the worm wheel as the tangential feeding .

1.Convenient hydraulic powed structure reduces the non-cutting time as well as the times to use the cutting tools .

2.Raised height for vertical column and increased stroke:The vertical column is made higher(180/130mm increased axial stroke in head slide)

3.High precision and long service life:The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance,enabing long service life and steady accuracy.
