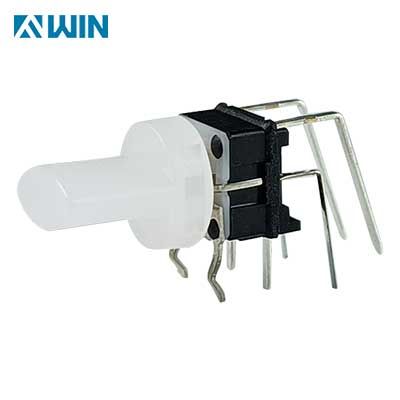

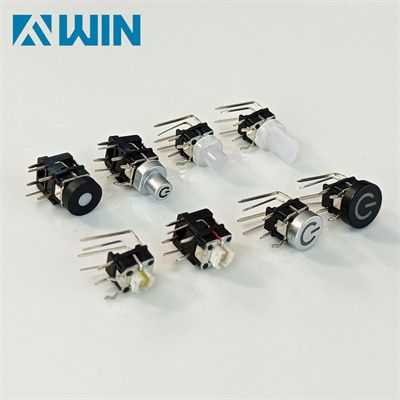

Right Angle Tact Switch With Illuminated LED

Right Angle Tact Switch With Illuminated LED

 ILLUMINATED TACT SWITCH TECHNICAL PARAMETERS:

Circuit: SPST
Current Rating :50mA
Voltage Rating :12VDC

Dielectric Withstanding Voltage:250VAC for 1minute
Contact Resistance :100 Max.(Initial)
Insulation Resistance :100 Min.
Operating Force: 180±50gf or 250±50gf

Total Travel :0.25mm±0.1mm
Operating Life :100000 cycles Min
Solder Specifications :260±50°C 5seconds

Material Composition: base, button:PA66

Fireproofing Grade:94V-2

Terminal: Brass Tin
Function: Momentary
Operating Temperature: 0°C to~60°C

Illuminated: LED (red/green/blue/green/white)

Packaging Details: Inner: Clarity bags/Outer: White Bags

Features:

small size, full color LED illuminated available, long electrical life cycles, SMT and vertical PCB terminal

Snap-in type, which can be directly mounted on PC board.

Some of output terminals can be also used as jumper leads, thus making circuit designs easy.

Standard knobs are available

Description:

Operating switches in all type of electronic equipments such as PC peripheral equipment, audio apparatus, multimedia equipment, industrial automatic control board, security equipment, VCRs, communication apparatus, home appliance, digital products etc.
