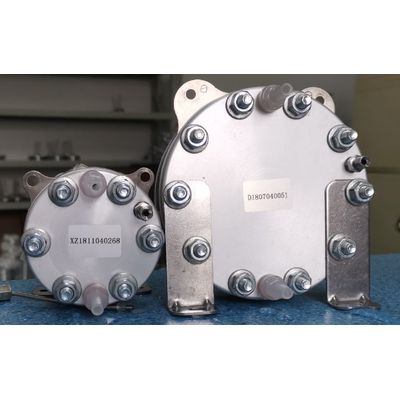

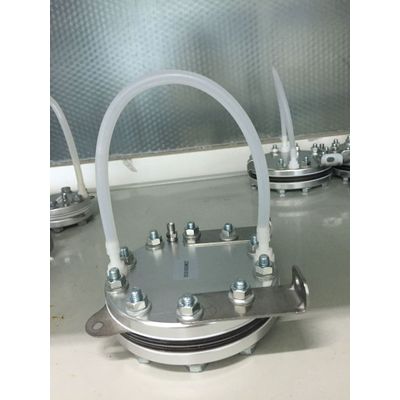

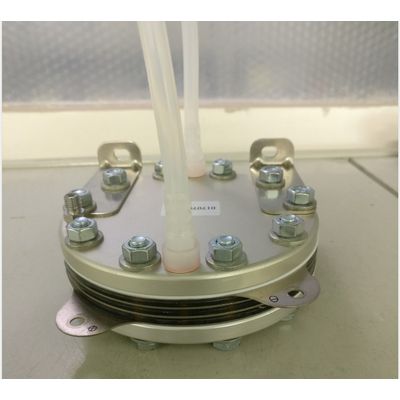

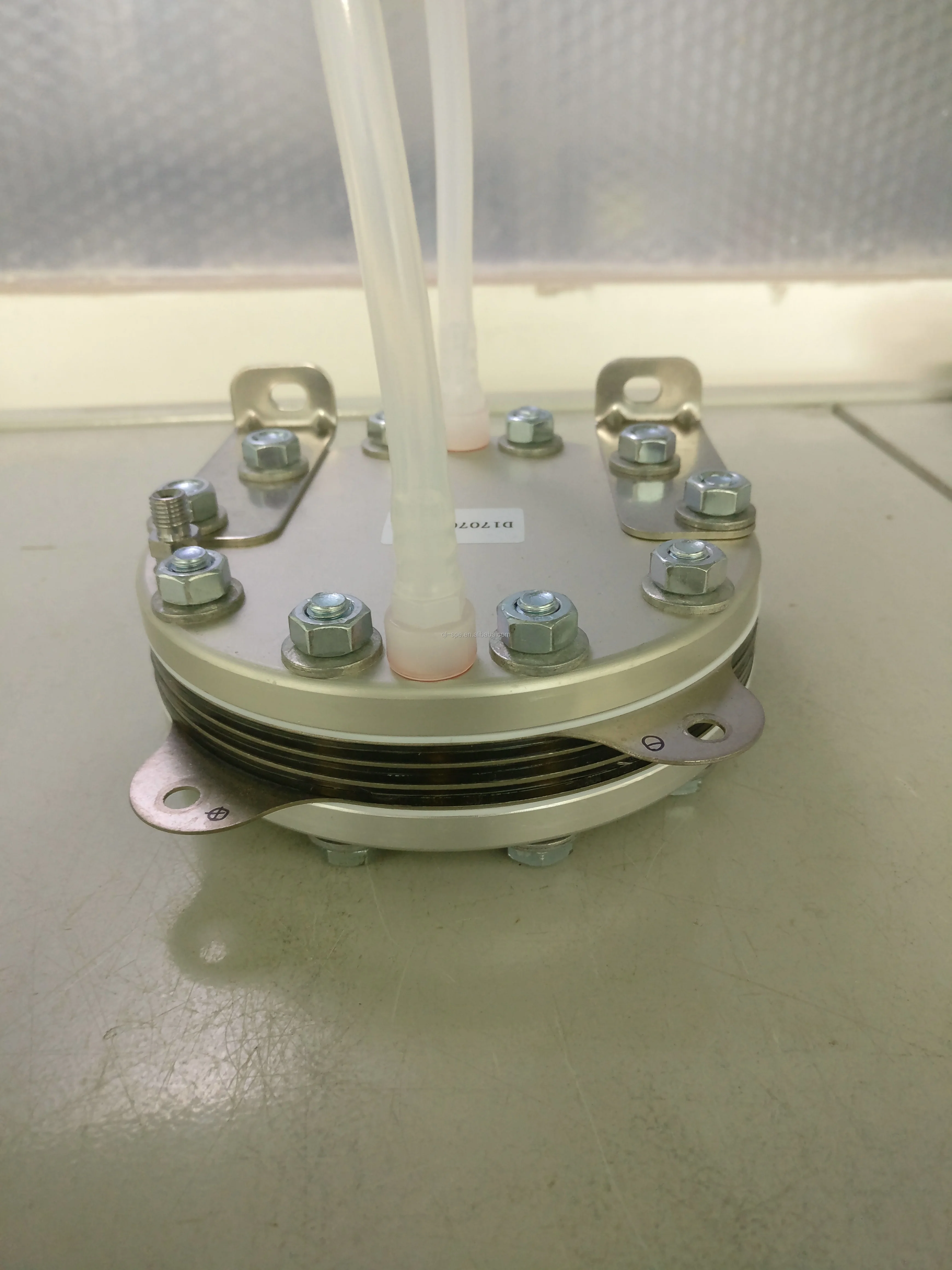

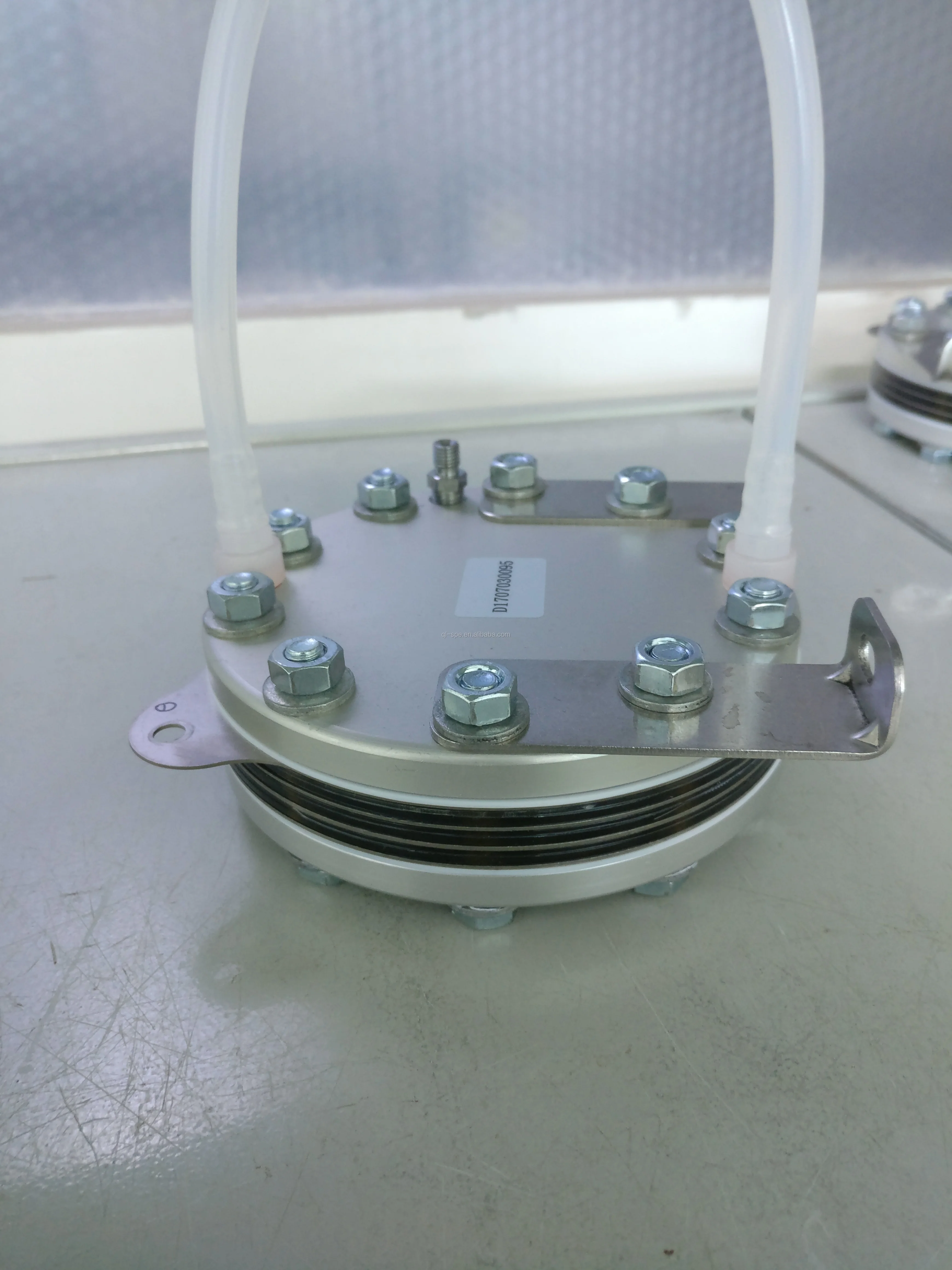

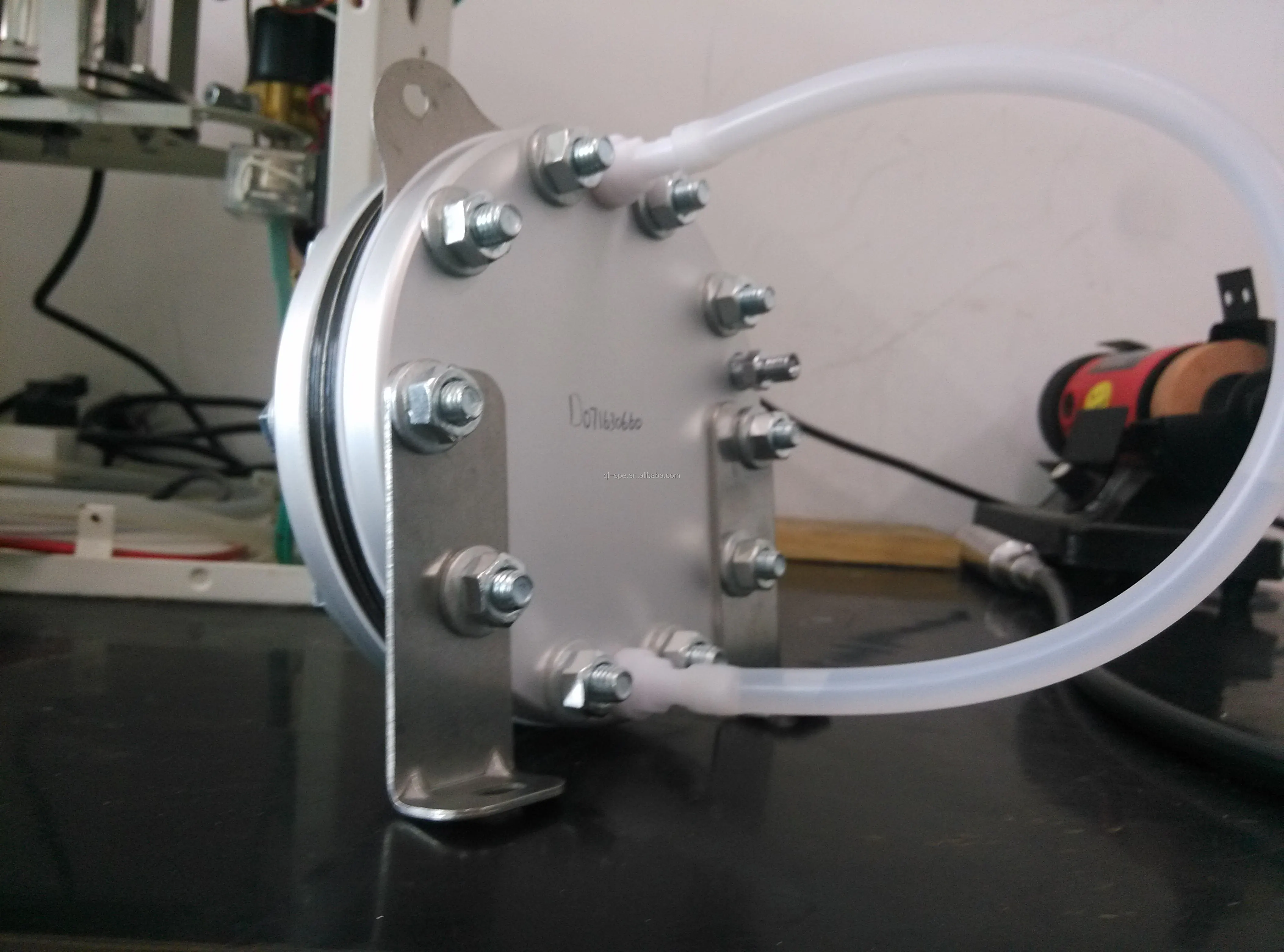

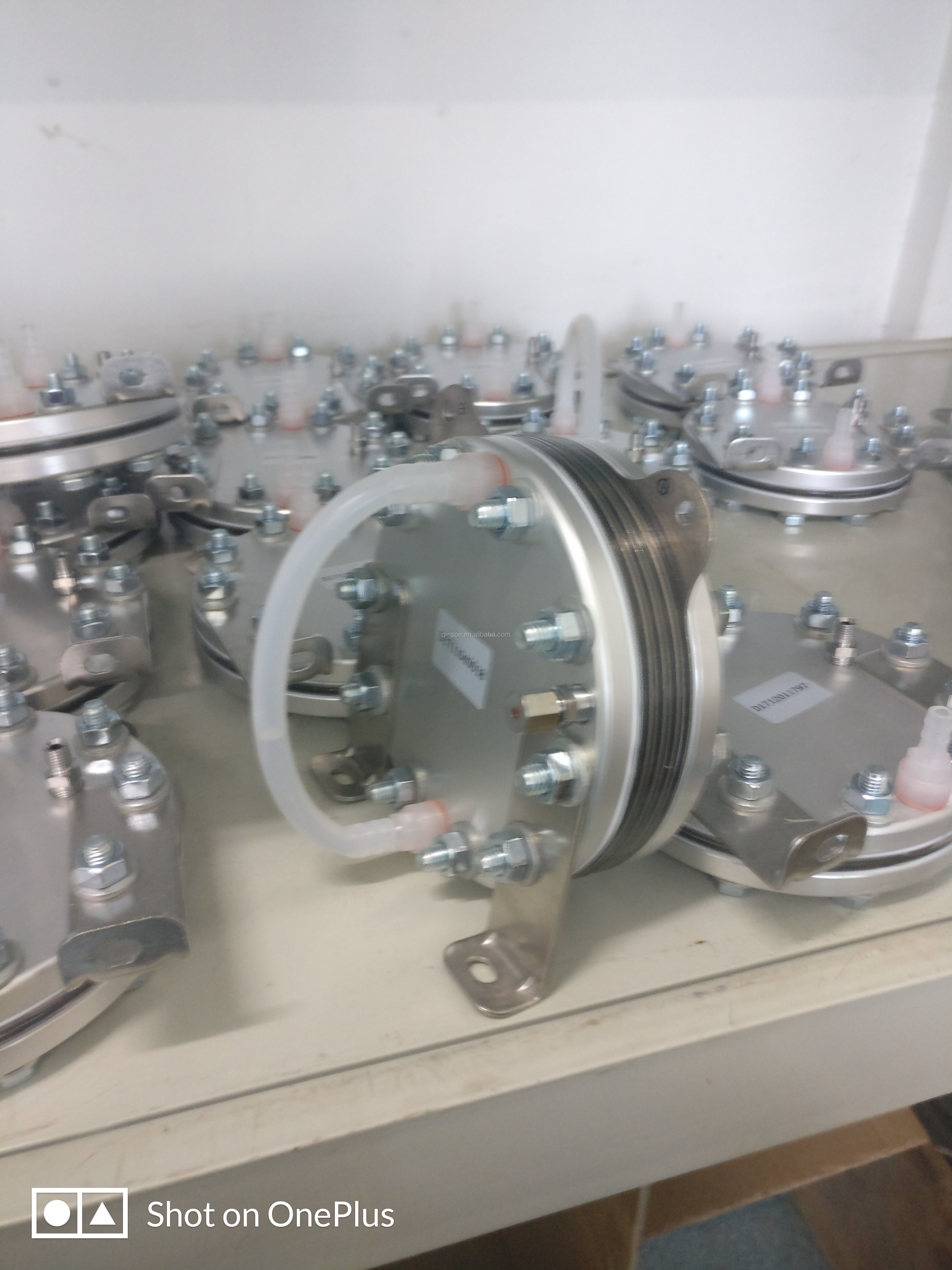

PEM hydrogen generator hho dry cell

Hydrogen and Oxygen Electrolyzer of water

-PEM Electrolyzer cell

Product Description

Product Introduction

QLC electrolysis cell is an advanced patented product, which are light , highly effective, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali). That's PEM technology.  The SPE electrodes, as the core of cell , are highly active catalytic electrode with nearly zero distance between the electrodes , which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency.

Working Principle

Electrolytic water meeting the requirements (with electrical resistivity >1MΩ/ cm) , after being put into the anode chamber of electrolytic cell, when power is switched on ,will be decomposed at once at the anode : 2H2O = 4H+ + 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2) gas.The hydrogen proton, in the form of aqua ion (H+.XH2 O), and under the action of electric field force, through SPE ion membrane, will arrive in the cathode to absorb electron to form hydrogen gas.

Technical Parameters

1. hydrogen flow: 300ml/min

2. oxygen flow: 150ml/min

Welcome to visit our factory! We could supply customized product according to different technical demand.
