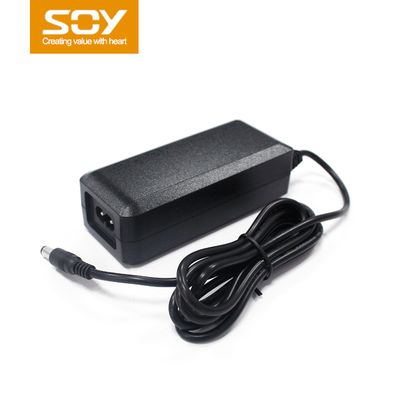

    Power adapter 12v with PSE

    Pictures:

    Technical InformationEnvironmental requirements

    Input voltage: AC100-240V, 50 / 60Hz
    Input voltage range: AC90-264V, 47 / 63Hz
    No-load power consumption: 0.3W Maximum
    output power: 24W or 30W
    Output voltage: 12V
    Output current: 2A 2.5A
    Certification: PSE
    Overcurrent protection: 120% min
    short circuit protection : Automatic recovery
    Output voltage accuracy: ± 5%

    Operating temperature: 0 u2103-45 u2103
    Storage temperature: -20 u2103-85 u2103
    Storage humidity: 5%-90% RH
    Insulation withstand voltage: AC 3000V (Min), 5mA (Max)
    Insulation resistance: DC 500V 100MΩ (Min)

    ReliabilityDimension

    Mean time between failures at 25 ° C ambient temperature, maximum load working
    Mean time between failures 50,000 hours
    burned at full load at 45 ° C, 100% aging test
    One year warranty

    107.5 x 45.7 x 33 mm
