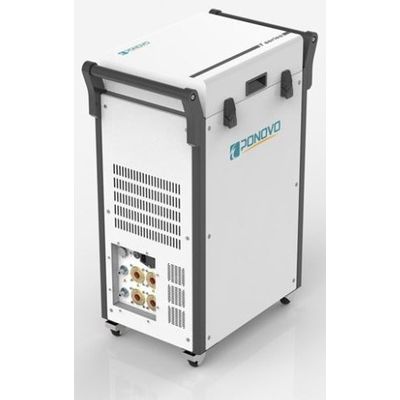

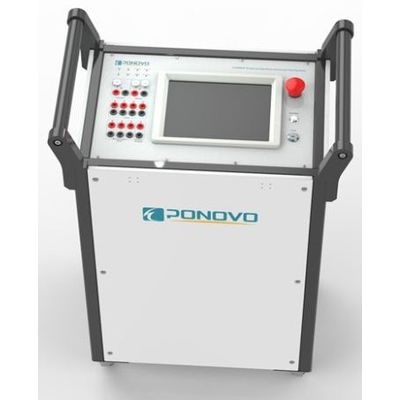

T1000UT Primary Injection Universal Tester

The T1000UT Primary Injection Universal Test System is a specific multi-functional test set for various primary injection testing applications, such as, Current Transformer testing, Voltage Transformer testing, Power transformer testing, resistance measurement, etc.

T1000UT can output up to 1000A (with CB01, up to 2000A), 2000V (with VB01, up to 12kV), and its variable frequency range is from 15- 500Hz, freely controlled by FPGA digital platform.

Besides standard test modules, the software supports user-defined format report. With integrated design, T1000UT is ideal portable solution, which could replace more than 3 conventional primary injection kit for on-site testing and reduce the transportation cost.

The accuracy of the T1000UT could up to 0.1% and its ohmmeter measurement is with wide range from 0.10 to 10MQ, suitable for vast different kinds of application. With IEC61 850 capability (SV&GOOSE), T1000UT could be used in digital substation for testing IEDs based on IEC61850, such as ECT, MU, etc. Besides, by working together with different accessories, it could be used for testing the power transformer isolation related testing, etc.

Features:

Multi-functional test capability in one system

1. Can replace multiple primary test devices, such as high-current injection set, uΩ meter, CT test set, VT test set, power transformer test set, etc.

Safety

1. Emergency Shut Button
2. Safety Lock
3. Overvoltage protection of each input and output

More Applications

1. Equipped with fiber optic port to support IEC61850 testings.
2. Built-in WIFI module to support wireless control by PC or iPad.
