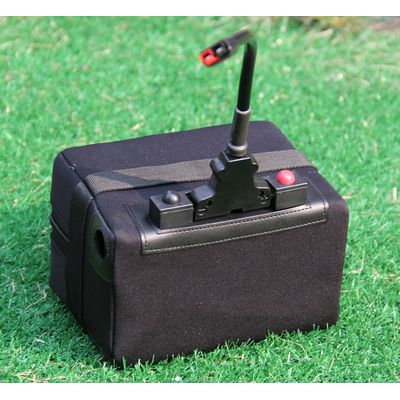

12.8V22Ah Golftrolley

1.Product Model:HT-4IFR12.8-22-Y (32650-3.2V-4S4P)

2.Nominal Voltage:12.8V

3.Rated Capacity:23±0.5Ah(C5)

4.Energy:281.6Wh

5.Internal Resistance:≤40mΩ

6.Weight: 2.4±0.1kg

7.Size:(168±1)mm *(128±1)mm*(102±1)mm

8.Voltage Range:10.0V~14.4V

9.Charger Current:≤5A

10.Discharge Current:20A

11.Max continuous current:≤30A

12.Cycle Life:≥1500 cycles, capacity retention rate≥80%).(Standard charge at 0.2C(A), rest 0.5~1h; discharge at 0.2C to cut off voltage,rest 0.5~1h,repeat the above steps until 1500 cycles.)

13.Protection function:Over charge protection,Over discharge protection,Over current protection,Temperature protection,Balanced function
