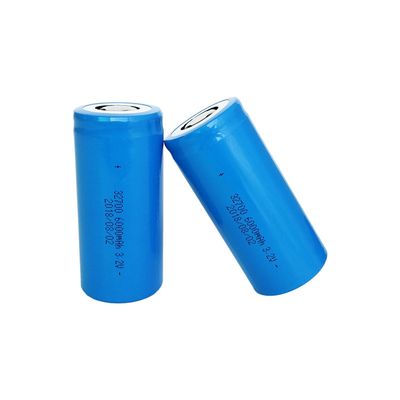

LF32650 3.2V 6000mAh LiFePO4 Battery Used For Solar Storage System, Solar Light Etc

3.2 V LiFePO4 cell

• Long cycle life of more than 2000 times,
• High safety standards,
• Excellent charging and discharging performance,
• High discharge rate of up to 10C,
• Environmentally friendly.

• Model number:  LF32650

• Nominal voltage:  3.2

• Capacity: 6000mAh

• Battery cell: 32650/3.2V/6000mAh

• Dimension: Φ32.5 X 70.9mm

• Application: Solar Street, E-scooter, E-bike

• Cut-off discharging voltage: 2.0V

• Maximum charging voltage: 3.65±0.2V

• Standard charging:

  • Constant current: 0.2C 6A

  • Cut off current: 0.01C 6A

  • Constant voltage:3.65±0.2V

• Standard discharging:

  • Constant current: 0.2C 3A

  • End voltage: 2.0V

• Continuous charge current 1C 6A (maximum)

• Continuous discharge current 1.5C 6A (maximum)

• Operating temperature range:

  • Charging: 0 to 45°C

  • Discharging: -10 to 60°C

• Storage temperature range: -20 to 25°C within one year, -20 to 40°C within 3 months

• Size (D X H) 18.2 x 65.3mm

• We also can supply you IFR16340-400mAh, IFR18650-1,400mAh, IFR26500-2,200mAh, IFR26650P-2,200mAh, IFR32600-3,500mAh, IFR32650-5,000mAh, IFR42110-11,000mAh, IFR42120-12,000mAh for car, motorcycle, HEV, PHEV and more

• Applied fields:

  • Communication equipment: PHS phone, interphone

  • Information equipment: notebook computer, PDA, portable fax, printer

  • Electric tool: powered drill, electric equipment

  • Electric vehicle, electric motorcycle, E-bicycle

  • Miner's light, mining auto-tracking instrument

  • Power solutions for solar energy storage, toys and other mobile products

• We welcome OEM and ODM orders and we sincerely hope to work with you hand in hand to create a prosperous future
