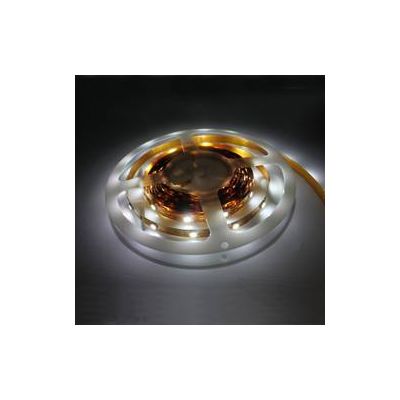

SMD 5050 LED flexible srtip light

Product Description

1) Specifications:

1.Model No:SEG-led strip light-30led

30 led/meter Voltage:DC12V Power:7.2W/n Current:0.6A/m Luminous Flux:405Lm/m

2.Model No:SEG-led strip light-60led

60 led/m Voltage:DC12V Power:14.4W/n Current:1.2A/m Luminous Flux:810Lm/m

2) Advantage:

Color available: Warm White(2700~3300K); natural white(4000~4500K), pure white(5500~6500K), cold white(7000~9000K)

Protection rate: Non-waterproof, Epoxy coating(IP65), Silicon tube(IP67) and silicon tube with epoxy stuffed(IP68)

By using RF and knob single color controller, can adjust the brightness

Using 10mm width FPC board which is extremely thin, easy fasten,easy bend and cut,

Using standard DC12V power supplier, easy matching and safe.

Kinds of solutions are available for power supply,controller and connector assembly

Can design solutions according to the customers' special requrement

3) Applications:

1. City lighting(building,ad wall, signboard, christmas sight decoration)
2. abnormity structure decoration(polygon wall, water drop shaped ceiling groove design in hotel, night club,KTV and so on)

3. Edge of hidden groove for living room(door frame,bar counter, gradevin,wardrobe, tv cabinet)
4. Auto beauty(body,bottom.)




Water-resistant design



5m/reel for standard length, various lengths are available



Solid-state, high shock/vibration-resistant



Viewing angle: 120 degrees



Voltage: 12V DC



Maintenance free and easy installation



Long lifespan: 100,000 hours+ (10+ years)



White LED: 50,000 hours



Basic technical data:




Light Sources: SMD3528 or SMD5050



Standard length: 5 meters/reel



Ribbon width: 10mm



Printed circuit board thickness:




Single color: 0.25mm



RGB tri-color: 0.2mm







Working voltage: 12V DC



Entire ribbon LED quantity: 300 pieces or 150 pieces
water,flicking,dimming etc.Making all kinds of gorgeous,amazing effacts.Easy to show the unique charming which different to the other ones. Characteristiclong life timeabove 50000Hrspower consumption lowenergy savingsaving power.Used on building outlinesidestepexhibition hallbridgehotelKTV and living roos,etc.
