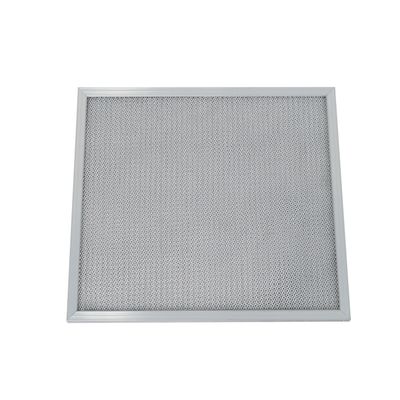

Washable Panel Metal Mesh Pre Filter

Washable panel metal mesh pre filter adopts multi-layer expanded aluminum foil mesh or stainless steel mesh and the metal mesh is pressed into undulations and intersect each other at appropriate angles.

Metal meshes are arranged from thick to fine according to density and pore size, hust increasing the dust collection capacity and filtration efficiency. The initial resistance is lower than 20Pa.

SPECIFICATIONS

Frame material:Galvanized frame/ Aluminum alloy frame/ Stainless steel frame

Frame thickness:10/21/46/96 etc

Filter material:aluminum wave nets/stainless steel nets

Maximum temperature:above 250u2103

Maximum humidity:100%

Optional aluminum depth 7~96mm

Efficiency:G1 G2 (EN779)45%~95% at 0.5μ

Customized size: Available

ADVANTAGE

Aluminum mesh primary filter, the filter is composed of corrugated and folded aluminum meshes of different specifications, which are placed in a staggered frame, which reduces the gap between the aluminum meshes, increases the density, and achieves a better filtering effect. For acid or high temperature environments, stainless steel outer frame and stainless steel corrugated mesh can be used.

The size of Washable panel metal mesh pre filter
