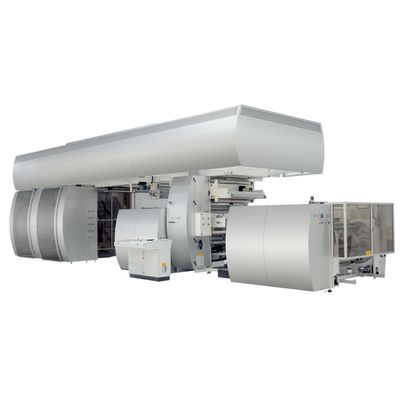

CI Flexo Printing Machine(Premium Class)

Printing material OPPPEPETPaper (Note: the web thickness, width must match with tension) Web thickness 12-70 Max. web width 1400mm Printing colors 8 colors Printing repeat 400-800mm(127-255mm) Colophony plate and double side adhesive belt can be chosen (a) 1.7+0.38mm (b) 1.143+0.5mm Max. machine speed 400m/min Printing speed 15-350m/min,acutal speed is effected by following: Lubrication system Centralized lubrication Web direction From left to right(from operator's side) Ink type Water-based, ethanol-based or solvent-based ink Driven method Shaftless(Full servo motor driving system) Register precision ±0.1mm Power supply 380V,50Hz (Can be changeable according to customer's requirement) Max. unwind/rewind diameter 600mm Heating method Electrical heating (can chose steam, hot oil, gas heating) Motor power 60kw Running power 20KW Electrical heating power 120KW Max. noise Lower than 85dBa(1m from the machine) Suggestion operation temperature 10-35 0C Relative humidity 30-80%(200C as reference temperature) Elevation height Max.1000mt Compression air No lubrication,drying and wipe off humidity with filter Air pressure 6Bar Dew point +20C Cooling water Filter:less than 20u Pressure:Min.2Bar--Max.3Bar Cooling roller entering water temperature (room temperature+200C):from 15 to 180C Central drum recycling water temperature:300C+20C Hardness(CaCO3):2.5-4mg/L PH:7-8.2 Machine color RAL3020(red)+RAL7035(cream)(Machine color refers only to the main structures manufactured and directly supplied by Cambridge) Machine size(L×W×H) 12m×6m×5.5 m
