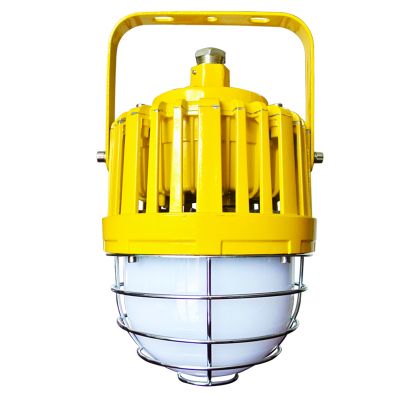

Explosion-proof LED Floodight (Platform Light)

Explosion-proof mark: ExdR II CT5 Gc/DIP A20TA, T5

Nominal voltage: AC220V/AC/DC24-36V

Light source: LED (40-100W)

Cable: Φ10-Φ14mm

Protection grade: IP65

Anticorrosion grade: WF2

External size: Φ210*310mm

Installation methods: boom type, wall type, guard bar type, flange type, bracket type, ceiling mount

Scopes of Application:

It is suitable for dangerous environments in power industry, oil exploitation, smelting, chemical engineering, military reserves and also suitable for offshore oil platform, loose pulley and other circumstances.

Suitable for Zone 2 explosive gas atmosphere, Class IIA, IIB, IIC explosive gas atmosphere and other environments which are wet and need high protection grade.

Features:

Safe and reliable

Through the authentication of authority, made totally according to national explosion-proof standard, with excellent explosion-proof and antiseptic performances. It can be used in any flammable and explosion-proof places;

Environmental protection. Adopting the fourth generation American Bridgelux high power pure white LED, low energy consumption, high light efficiency, with the service life span of the light source reaching 50,000h, non-maintenance for long time;

Scientific structure. The light source part is separated, with heat convection guiding device which is designed according to the heat conduction theory, better for heat dissipation of the LED and lengthened its service life span;

The electric box is suspending design, which greatly lower the temperature rise of the driver and lengthen the life span. The whole light is one-piece design, with the installation methods of the boom type, curved pole, bracket type etc, easy and convenient to install and maintain;

Rational light distribution design. Special transverse and vertical light distribution design, high light efficiency, high usage and large area irradiation, providing 360°full range lighting, uniform illumination, soft light and no glare;

Modular design. Light source modular, reflector modular, power modular etc, are all in standard modular design, convenient to exchange and reduce the maintenance cost in future;

Adopting V0 grade optics PC transparent parts, with high light transmission, high and low temperature resistance and great anti-shock function;

Adopting high strength protection cover, to prevent outside shock and protect the good light transmission performance of the transparent parts;

Strong and durable. The shell is die-casted by aluminum alloy, adopting the high-temperature electrostatic powder coating process, excellent anticorrosive performance; The light is well sealed to ensure waterproof and dust-proof performance.
