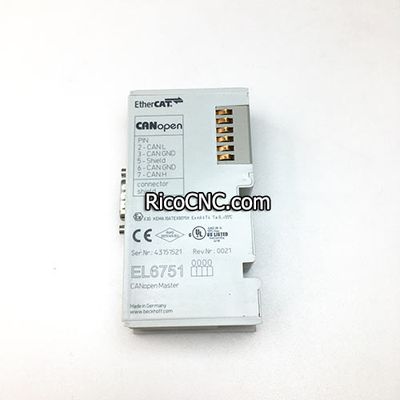

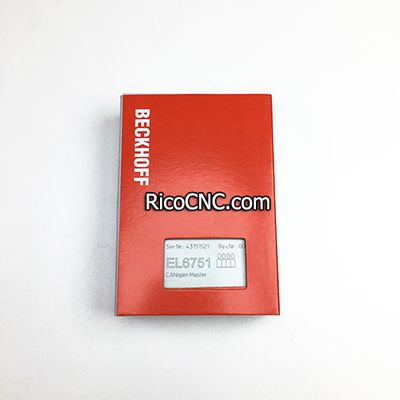

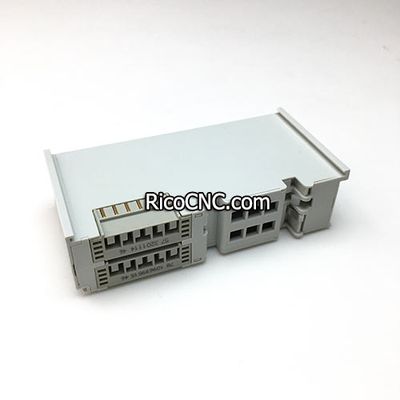

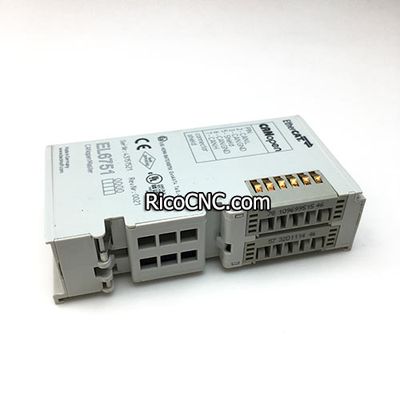

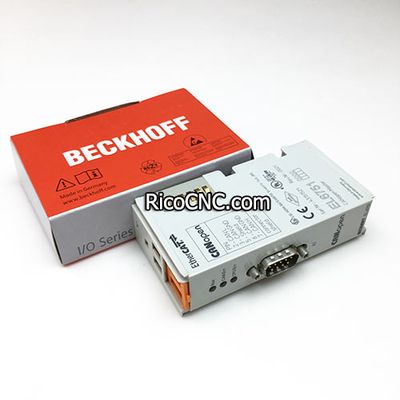

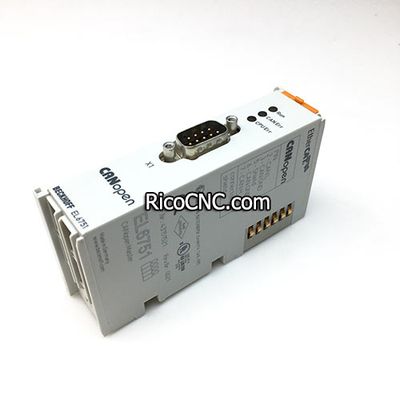

  Beckhoff EtherCAT Terminal EL6751 with Master/Slave Terminal for CANopen

  EL6751 is an EL6xxx series master terminal manufactured by Beckhoff. This terminal weighs approx. 70 g, operates at a temperature range of -25 to +60 degrees Celsius, and its current consumption (from the E-bus) is typ. 230 mA. It is widely used in Homag woodworking machine.


  EL6751 has a powerful protocol implementation with many features:
  • All CANopen PDO communication types are supported: event driven, time driven (using an event timer), synchronous, polling.
  • synchronization with the PC controller’s task cycle
  • SYNC cycle with quartz precision for drive synchronization, zero cumulative jitter
  • parameter communication (SDO) at start-up and when running
  • emergency message handling, guarding and heartbeat
  • powerful parameter and diagnostics interfaces
  • online bus load display


  Technical data for EL6751 master terminal and EL16751-0010 Slave terminal

  Technical data	EL6751	EL6751-0010
  Technology	CANopen master terminal	CANopen slave terminal
  Fieldbus	CANopen
  Number of fieldbus channels	1
  Data transfer rates	10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud
  Communication	CANopen network master and CANopen manager, optionally CANopen slave
  Interfaces	D-sub connector, 9-pin according to CANopen specification, galvanically decoupled
  Hardware diagnostics	status LEDs
  Current consumption E-bus	typ. 230 mA
  Special features	status LEDs, CANopen network master, CANopen Manager, supports RAW-CAN	status LEDs, CANopen slave
  Weight	approx. 70 g
  Operating/storage temperature	-25…+60 °C/-40…+85 °C
  Relative humidity	95 %, no condensation
  Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
  EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
  Protect. rating/installation pos.	IP20/variable
  Approvals/markings	CE, UL, ATEX
  Ex marking	II 3 G Ex nA IIC T4 Gc



  EL6751 can be used for connection to CANopen networks. The terminal, however, enables a more space-saving implementation since no PCI slots are required in the Industrial PC.
