filament winding machine

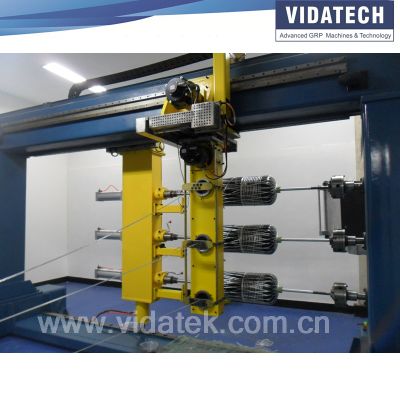

This machine is portal type filameng winding machine with 1-4movement axis and 1-6 working spindles.The roving(glass fiber/carbon fiber) impregnated with resin will be on mandrel by the movement of mandrel rotation,trolley,carriage horizontal movement,cross feed and roving comb rotation under the winding pattern control softwared.

1. TYPE VMX
2. Axis(filament winding direction)
2 axis ,3 axis,4 axis
3. Spindles(cylinder quantity)
2 spndles,3 spindles,4 spindles,5spindles
4. DN(Diameter) 0 - 400 mm
5. Product Length 0 - 2.5 m
6. Porduct Working Pressure(PN) PVC/Glassfiber/Carbon fiber/Steel/Aluiminio 15 -20mp
SCBA(Glassfiber) 20 Mp
SCBA(Carbon fiber) 30 Mp
Shape Sphere/Hemisphere
Cylinder
Ellipsoid/Semi ellipsoid Tapered tube
Winding angle > 0. < 90.
Operation method
Manually Semi-auto Automatically
10. winding axis
Mandrel rotate Trolley horizontal movement
Cross feed Optional Roving comb rotate
Accuracy: ±0.2mm
Winding pattern Hoop Helical ( converted automatically)
roving feed in style
Directly pull out from spool outside
Nee more technical details please contact directly.

DN50mm-DN500mm
2-4 axis
1-6 spindles

1.pipe for water,oil,sewerage
2.pressure containers for gas,petroleum gas cylinder,CNG or LPG,hydrogen storage vessels
3.natural gas vehicles,compressed natural gas tank
4.Granary,silo storage for grain
5.Light poles,sail mast,Golf clubs
6.Rescue air tank,Compressed air tank
7.High pressure tanks and bottles
8.Emergency care
9.Military parts
10.Any other product required the reinforcement strenght made by multi axis winding
11.explosion-proof tank
