Surge Protective Device CET-T1-AC
Home
Surge Protective Device CET-T1-AC

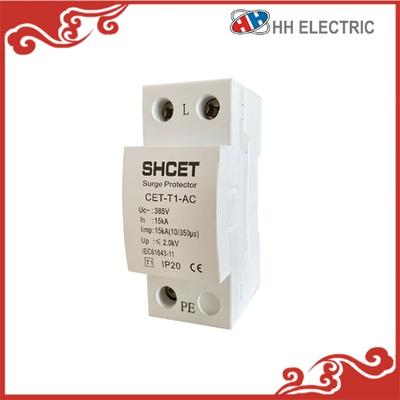

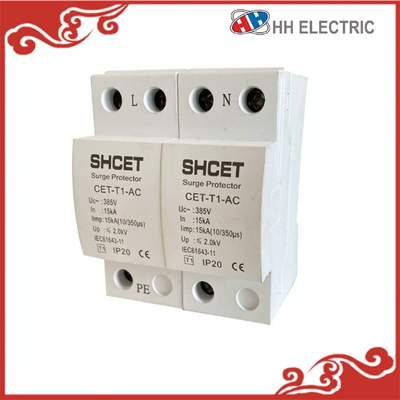

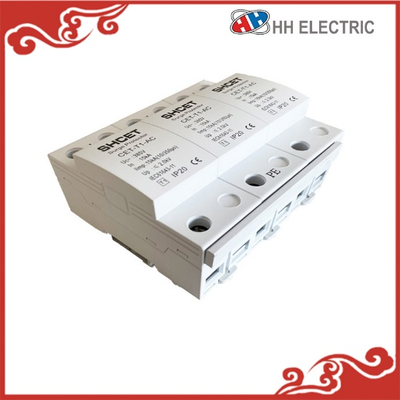

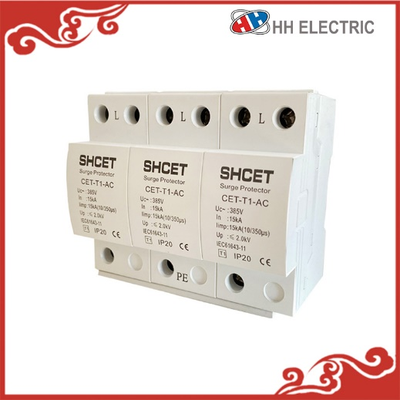

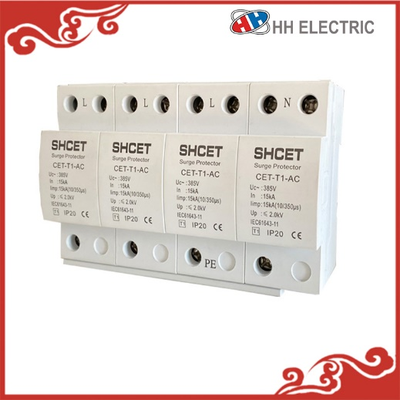

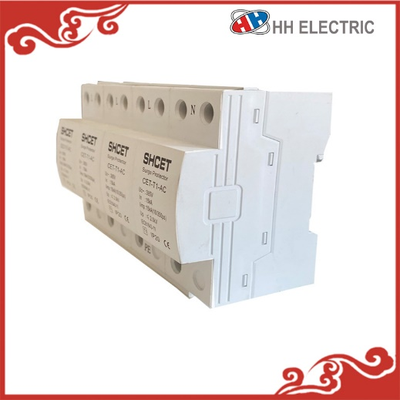

Surge Protective Device CET-T1-AC

$6.00~$30.00
Min.Order 1   Others
Min. Order: 1
Payments: T/T
Delivery: by Sea
Origin: China
Packing: -
Inspection: BIS ,SASO ,CE-LVD-EMC,RoHs ,IES ,TUV, EAC, ISO9001, SAA, Intertek TIR
Samples: Charge
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

    Product Introduction

    1. Surge protective device is an indispensable device in the lightning protection of electronic equipment.
    2. And solar energies are very popular all over the world now,it's also a must of surge arrestor if you make a solar system.
    3. AC surge suppressor (called a "surge protector") is a device inserted in the alternating current ( AC ) utility line to prevent damage to electronic equipment from voltage "spikes" called transients.
    4. Electrical surge protector work by diverting the extra energy in the electrical surge away from the main circuit, usually to "earth".
    5. A domestic surge protection devices (SPD) which is connected at the main distribution board is constantly monitoring the supply voltage.



    Model

    CET-T1-AC

    Rated voltage (max.continuous a.c.voltage) [ UC ]

    385V

    Lightning impulse current (10/350) [ limp ]

    15kA

    Nominal discharge current (8/20) [ ln ]

    15kA

    Voltage protection level [ Up ]

    ≤2.0kV

    Follow current extinguishing capability at UC [ If ]

    32A fuse will not be triggered at 2kA 255V

    Response time [ tA ]

    ≤100ns

    Max.backup fuse(L)

    200A gL/gG

    Max.backup fuse(L-L')

    125A gL/gG

    TOV voltage

    355V / 5sec

    Operating temperature range (parallel wiring) [ Tup ]

    -40u2103  +80u2103

    Operating temperature range (through wiring) [ Tus ]

    -40u2103  +60u2103

    Cross-sectional area

    35mm2 solid / 50mm2 flexible

    Mounting on

    35mm DIN rail

    Enclosure material

    Purple (module) / light gray (base) thermoplastic,UL94-V0

    Dimension

    36mm

    Test standards

    IEC 61643-11

    Certification

    CE ROHS ISO9001

    Type of remote signalling contact

    Switching contact

    Switching capacity a.c

    250V / 0.5A

    Switching capacity d.c

    250V / 0.1A; 125V/0.2A; 75V/0.5A

    Cross-sectional area for remote signalling contact

    Max. 1.5mm2 solid / flexible
