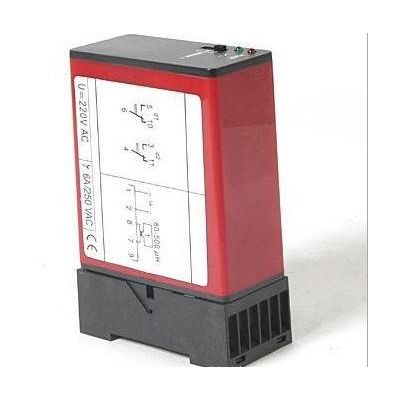

IVD-110 single automatic gate vehicle loop detector for parking or toll system

Product Description

High temperature stability, used in kinds of environment
Environment drifting compensate automatically
Multilevel lightning protection
With function of sensing loop malfunction automatically (disconnection or cutting-out)
Cooperate with barrier gate to realize vehicle anti-hit and automatic close function

Product Specification / Models

IVD-110 is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding
access ways or for counting vehicles. The output signal can be used for controlling door and gate drive
mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots.
IVD-110 has two-way output relays. One is unlimited output when loop is temporarily covered, while the
other is multi-mode that can be set by users.

Technical data

Operating voltages: 12V AC/DC ±5% 24V AC/DC ±5%
110V AC ±10% 220V AC ±10%
Power consumption: < 5W
Output: Relay output
Frequency Range: 20KHz to 170KHz (adjustable)
Reaction time: 100 ms
Sensitivity: High, medium, low (adjustable)
Loop inductance: Ideal 80µH to 300µH (include connecting wiring)
Max 50µH to 500µH (include connecting wiring)
Loop conn. Wiring: Max. 100m, twisted at least 20 times per meter,
Total resistance <10 Ohm
Operating temp.: -30to +70
Storage temp.: -40to +85
Connection: 11-pin socket
Dimensions: 74×36×85 mm (L×W×H)
Net Weight: 270g (include socket)
