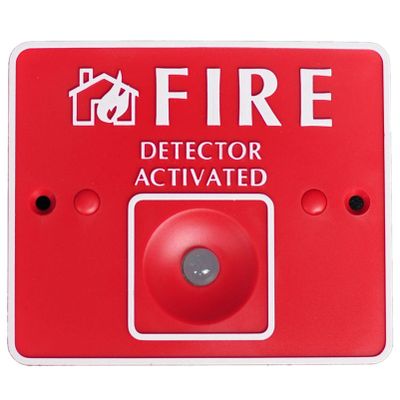

Remote LED for fire alarm security system

General Description

The device is remote LED uses a state of-the-art
designs. This LED is designed to be used with
detectors.
One 8mm LED provide local 360° visible alarm
indication. They flash with the same as detector that
be connected

Features and Benefits
Compatible with all the conventional fire alarm
control panel
8mm Big Size LED
Outside two holes provide 83mm(USA)
Inner two holes provide 59mm(Europe)
Wiring Terminals provided on the PCB board

Technical Specifications
Ordering Information
Individual(1 units)
Dimensions
(w x d x h millimetres)
Weight
102x86x32 50g
Di mension : 102X86mm
Height (including mounting base): 32 mm
Weight: 50 g
Operating Temperature Range: -10°C to 50°C
Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
Latching Alarm: Reset by momentary power interruption

Electrical Ratings
System Voltage (nominal): 3 VDC
Alarm Current: 20 mA @ 24VDC
