Fire Alarm System, 24V, 4/8/16 ZONE Conventional Fire Alarm Control Panel, ANKA AJ-S1000

Conventional fire fighting alarm

AC POWER: 90 to 270VAC, 50Hz, 3.0amps.
Wire size:minimum 14AWG(2.0mm2) with 600-volt insulation.
BATTERY: Sealed lead-acid batteries only
Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge.
Maximum battery charger capacity: 18AH battery.
Features
Four to Sixteen style B (Class B) initiating device circuits (IDCs).
All zones accept two-wire smoke detectors and any normally open contact devices.
Zones 1-16 configured as general alarm zones.
All circuits are power-limited and supervised, meeting the latest ULC requirements using fuseless technology.
Two built-in, style Y (Class B) Notification Appliance (signal) circuits (NACs).
NACs may be programmed: silenceable, Non-silenceable, Auto-silence
1.25 amps of NAC power, 3.00 amps of total system power.
Alarm, trouble and supervisory, relay output, 24volt operation.
Resettable four-wire smoke detector power @ 500mA. Non-resettable power @ 500mA
Integral battery charger capable of charging up to 18AH batteries (batteries over 4AH)
Require use of the external battery backbox or ULC listed equivalent).
Disable/enable control per IDC
Reverse polarity protection.

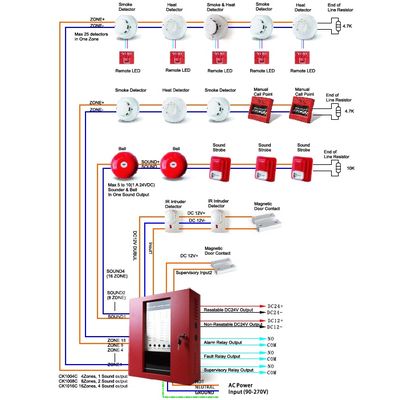

The Panel is a 4-zone to 16-zone FACP (Fire Alarm Control Panel), which uses
conventional input devices. The panel accepts water flow devices, two-wire
smoke detectors, four-wire smoke detectors, pull stations and other
normally-open contact devices. Outputs include four Notification Appliance
Circuits (NAC, SOUND1-4), three standard Form-A relays (alarm, trouble and
supervisory) and an EIA-485 port to interface with remote annunciators and
optional remote relay modules. The FACP is field programmable via the panel
keypad. It also supervises all wiring, AC voltage and battery level.
