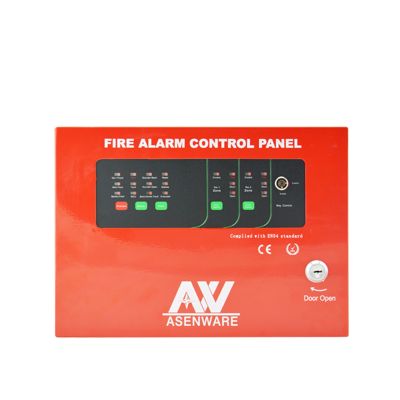

1 zone Conventional fire alarm control panel

1 Zone Conventional Fire Alarm Control Panel

Model: AW-CFP2166-1

Description

1. AW-CFP2166-8 conventional fire alarm panel is designed based on EN54 part 2 & 4 standard.
2. Adopted modularized design, flexible extendable capacity.
3. Two-level control mode by a lock
4.27VDC power supply output.
5. FIRE PROTECTION, FIRE ROUTING and FAULT signal output, the output can be configured to dry relay type or wet sources type.
6.2 channel general sounders output.
7. Each zone has 1 circuit detectors input.
8. Each zone can be disable by a button.
9. It has RESET button to reset the panel.
10. SILENCE button to stop BUZZER and SOUNDERS.
11. EVACUATE button to start a manual fire alarm immediately.
12. TEST button to test all LEDs orderly.
13. Low-battery protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
14. Optional GSM module is available for fire alarm by SMS.

Features

1.  Panel is designed based on EN54 part 2 &4 standard
2.  It is modularized design, the panel can expand from 1 zone to 32 zone easily
3.  It has 2 level control mode by a lock, 24VDC power supply output, 2 general sounders output
4.  Eache zone has 1circuit detectors input and can be disable by a button
5.  It has FIRE and FAULT signal output,  RESET button to reset the panel, SILENCE button to stop BUZZER
and SOUNDERS, EVACUATE button to start a manual fire alarm immediately
6.  It has an optional GSM module for fire alarm by SMS
7.  It is economic, user-friendly and easy maintenance

Parameters
