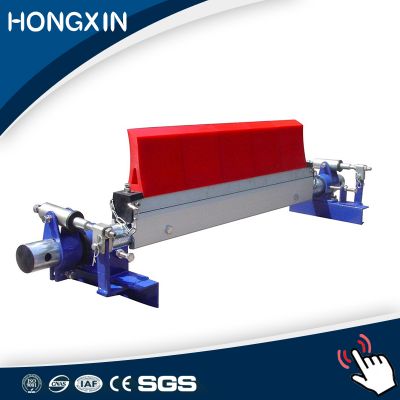

wear resistant polyurethane conveyor belt cleaner

Home

Chemicals & Energy

Rubber Products

Other Rubber Products

wear resistant polyurethane conveyor belt cleaner

Min. Order: 1

Payment: T/T

Minimum Order: 2 pcs

Delivery: -

Origin: -

Packing: -

Inspection: -

Samples: Charge

Sample Price: $200.00

Contact Supplier

Favorite

Inquiry Basket

Product Attributes

Company Profile

Logistics and other information

Product Details

Specification:
The new belt cleaners are designed to maintain the correct angle of attack and appropriate pressure against the conveyor belt throughout the service life of the blades, and under normal conditionsl there is no need for adjustments.

The blades are shaped for maximum removal of carry back and minimum material build up on the cleaner itself. The blade shape and the spring tension maintain an efficient relatively constant cleaning pressure against the conveyor belt as the blade wear down.

Item	Data	Item	Data
Belt width. mm	1400	Belt Speed. m/s	3 ~ 5
Working temperature	< 80 C	Breaking Elongation. %	> 300
Abrasion Loss. cm3/1.6 km	0.019 ~ .025	Elastic resistance. %	34
Elongation. %	> 300	Clean Efficiency. %	90 ~ 93
Tensile strength. MPA	30 ~ 53	Density	1.12 ~ 1.25
Tear strength. Kn / m	70	Hardness. Shore A	85
Compressive strength. MPA	6 ~ 10.5	Fiction Coefficient	0.12 ~ 0.15

Application:

The conveyor belt cleaner is made of high strength polyurethane, which has features of flame retardant, anti-static, high wear resistance, high elasticity, low friction coefficient, project the belt and prolong the service life.

Advantages:

1) Self adjust tensioner.

2) Easy to installation and maintenance.

3) Multiple type replacement blade available.

4) Reduce downtime and maintenance cost.

5) High wear resistant, protect belt and prolong its service life.

Spec:

1.Primary conveyor belt cleaner

Size	Belt Width / mm	L / mm	L2 / mm	H / mm	L3
HX-FC 50	500	500	1400	182	According to onsite installation
HX-FC 65	650	650	1600	182
HX-FC 80	800	800	1800	182
HX-FC 100	1000	1000	2000	182
HX-FC 120	1200	1200	2200	182
HX-FC 140	1400	1400	2400	182
HX-FC 160	1600	1600	2600	182
HX-FC 180	1800	1800	2800	182
HX-FC 200	2000	2000	3000	182

2.Secondary conveyor belt cleaner

Type	Belt Widt /mm	L1/ mm	L2 / mm	L3 / mm	Weight / kg
HX-SC65	650	600	According to onsite installation	1600	33
HX-SC80	800	800		1800	37
HX-SC100	1000	1000		2000	40
HX-SC120	1200	1200		2200	43
HX-SC140	1400	1400		2400	47
HX-SC160	1600	1600		2600	50
HX-SC180	1800	1800		2800	53
HX-SC200	2000	2000		3000	57
