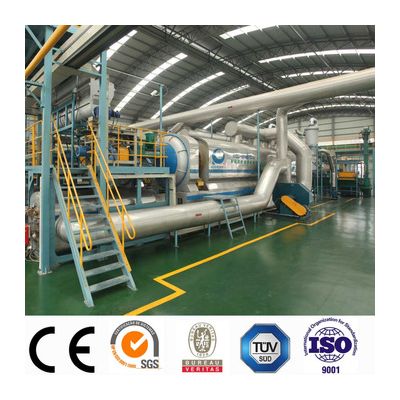

Industrial Continuous Waste Plastic Pyrolysis Production Line
Product Description
Main parts of the system and their function
| No. | Part | Function |
| 1 | Shredding system (optional) | This system shreds waste plastics into small chips. |
| 2 | Continuous pyrolysis system | Plastics chips, which are continuously fed into the reactor with low-temperature sulfur transfer catalyst through the feeder, have a complete pyrolysis reaction in the atmospheric condition. |
| 3 | Heat supply system | Reactor heat supply system consists of heat supply equipment and flue gas heat recovery equipment. The high-temperature flue gas generated from fuel burning is mixed with recycled flue gas to supply heat for pyrolysis so as to reduce energy consumption and exhaust gas emission. The incondensable combustible gas produced from pyrolysis reaction is the main fuel of the heat supply equipment. |
| 4 | Oil and gas cooling and separation system | After cooling and separation, the oil gas from the continuous reactor is separated into fuel oil and incondensable combustible gas. The fuel oil will be conveyed into oil tank and then transferred to the tank farm by oil pump; the incondensable combustible gas will be taken into combustible gas scrubbing system. |
| 5 | Combustible gas scrubbing system | The incondensable combustible gas generated from pyrolysis reaction will be taken into the gas tank by fan. NaOH solution was applied to absorb the harmful content like sulfide in the combustible gas. All the scrubbed incondensable combustible gas will be transferred into heat supply system as fuel. |
| 6 | Discharging System | The solid outputs produced from pyrolysis are cooled through water cooling discharger and water cooling elevator. Steel is separated from carbon black by magnetic separator, entering a receiving hopper, and carbon black is delivered to a buffer silo. The small amount of dust produced in transportation and separation will be collected by dust collector. |
| 7 | Gas Purification System | After cooling, the flue gas from the heat recovery device will enter in alkali absorption tower and purification tower for multi-stage purification, through which the SOx, NOx, particles and other harmful contents in flue gas can be eliminated effectively. The activated carbon in the filling material tower i can precisely treat the SOx, NOx, particles and other harmful contents in flue gas. |
Main features and advantages:
1. Real-sense industrial continuous pyrolysis equipment with clients operating both in China and abroad.
2. Unique low-temperature catalytic pyrolysis technology, non-coking heat distribution technology,
3. Fully automatic; PLC is applied in the whole system.
4. Low labor demand, only 3~4 workers are required
5. Over 30 years’ experience ensures the stability and safety in operation
6. Extremely environment-friendly
