Brief Introduction :

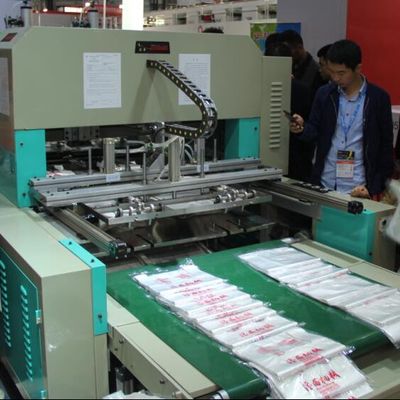

New designed super high speed T-shirt bag making machine ,is special for making T-shirt bag ,which is two lines high speed production, easy to operate .high output ,special servo motor driver.
Features:
1. Unwinding tension with AC inverter automatic control .
2. Turnover sealing knife ,easy clean design.
3. The whole set of bag has design of swaying ,no paste between two bags mouth.
4. Fully automatic tacking of whole set and leveling stack design.
5. Multi-term automatic warning ,automatic stop design .
6. Finish stack bags with fold device.
Optional
1. V2 model with optional 300pcs/min(line speed 150m/min)
SPECIFICATIONS
Model |
| |
450×2 | 600×2 | |
Max. Width | 200-380mm×2 | 370-550mm×2 |
Max. Length | 300-600mm×2 | 370-800mm×2 |
Bag-making Thickness | 0.01-0.05mm | 0.01-0.05mm |
Bag-making Speed | 250-300pcs/min×2 | 250-300pcs/min×2 |
Air Pressure | 10HP | 10HP |
Main Power | 12.5kw | 13.5kw |
Weight | 2600kg | 2800kg |
Overall Dimension | 7000×1600×1800mm | 7000×1800×1800mm |
* The specification are subject to be changed for improvement without notice
