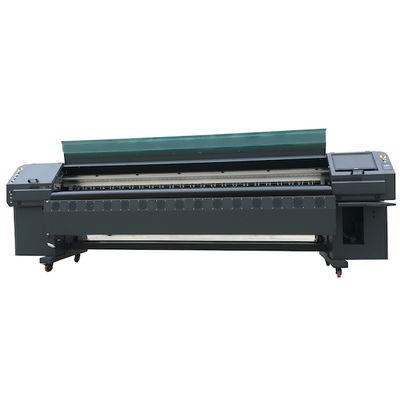

konica 512i large format solvent printer

Product Description

3.2 m solvent printer equipped with konica 512i printheads for outdoor sign application.

Product Feature

fast speed, vivid printing quality

Product Specification / Models

Detailed Product Description

konica512i  solvent printer
1, solvent printer
2, konica 512i
3, 3.2m print width



solvent printer fy 3278n with seiko510/50pl printhead
use: infiniti/challanger solvent printer
ink: 512i solvent ink



Model No.
w-jet 3208

Print head
Type
KONICA 512I / 30pl

Quantity
4 x 2


Resolution (dpi)
720dpi

Color
4 color
6 color
4 color

Speed
2 pass
140 sqm/h

3 pass
91 sqm/h

4 pass
70 sqm/h
48 sqm/h
48 sqm/h

Media
Width
3.3m

Types
Frontlit, Backlit, Vinyl, Polyester, Window Film, Mesh, Leather, Backlit Film

Feeding and Take-up
Optional

Cleaning System
Positive Pressure Cleaning, Anti-Clogging Flash Function & Capping System

Heating System
Pre/Post Heater, Cooling Fan System

Environment
Temperature:20C-28C Humidity:40%-60%

Rip Software
Photoprint, Maintop, Wasatch (optional)

Print head Height
2-4mm (adjustable)

Interface
USB

Power
AC220V, 50HZ/60HZ, 500W-1800W

Size
Weight
Machine
L4390 x W780 x H1280mm / 360kg

Packing
L4400 x W850 x H1320mm / 520kg






Features
<> Seiko Instrument Group SPT print head, 510 nozzles per print head
<> The voltage of the print head is able to adjust automatically depending on the temperature. This will

solve the problem on nozzle clogging under huge temperature change.
<> The function of skipping white space is added to increase productivity.
<> The adjustment of bi-direction, step and carriage moving speed can be modified during printing.
<> Edge feather function can blur the pass line and feather pass edge.
<> Well designed alloy-aluminum girder is installed to decrease the noise during printing.

Achieve the perfect quiet working environment.
<> Photoprint / Maintop / Wasatch software provide user-friendly interface and handy function with

two types of printing.
<> 100% single color black is used on printing black text to avoid mixture of color.
<> Control system has the function of resuming printing after the power is cut off. This helps you to save

unnecessary loss of cost.
<> The powerful suction fans equipped under the printing platform to avoid the collision between the carriage

and the media, high resolution can be obtained.
11

Application / Models

outdoor printing.
