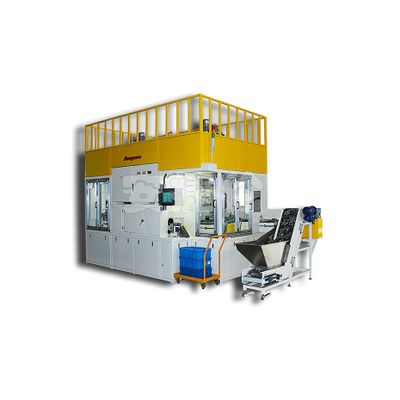

inner coating machine ZG100

AJL.ZG100 auto-gluing equipment for inner hole automatic gluing machine is an independent innovation developed by Suzhou Agilent Precision Machinery Co., Ltd., which is an auto-gluing equipment with independent intellectual property rights. It is mainly used for automobile shock-absorbing parts and metal rubber parts. The surface of the inner hole is glued. In principle and structure, the phenomenon of leakage spraying, misspraying and adhesive waste caused by traditional spraying equipment is solved. At the same time, the rubber coating equipment has the advantages of automatic loading, automatic coating, drying, and automatic discharge. The main technical indicators reach the advanced aquatic products in the industry.

FEATURES

01 New design concept, modern sheet metal craftsmanship and French technology manufacturing, exquisite appearance and elegant appearance.

02Automatic loading and unloading system greatly reduces the labor intensity of workers and improves production efficiency.

03 Adhesive method is adopted, there is no waste caused by spraying of glue mist and splash, and it has the functions of environmental protection and saving of rubber material. The transmission adhesive method uses only 50 ~ 70% of the rubber material. The utilization rate of rubber can reach more than 95%.

04The glue supply system is equipped with an automatic flow control system, which can ensure uniform glue application and adjustable thickness without the occurrence of spray gun blocking and leakage caused by traditional spraying methods.

05Using a fully imported servo control system and a novel design mechanism, it provides a reliable guarantee for the precise positioning of the workpiece and the fast and stable transmission.

06 The production cycle of 4-6 seconds, preheating, gluing and drying are performed simultaneously.It is a solution for large-scale, automated gluing.

APPLICATION FIELD

Adhesive roll coating: used for coating the inner hole surfaces of automobile shock-absorbing parts and metal rubber parts.

ZG100

The main technical parameters of Inner hole glue machine:

Table height: 800mm
Air pressure: 0.6Mpa
Voltage: 380V ±10%
Weight: 4000kg
The equipment dimension about:L4900 * W2200 * H3200

Machine features of Inner hole machine:

1. The brand-new design idea, fine elegant appearance
2. It uses the cam protractor which can get precise index,high location accuracy and better performance
3. 4-8s/piece of takt time is a great solution for massive production
4. It is a real intellectualized equipment who can automatically fulfill the process from load to unload the qualified parts,and many procedures without manual operation.
5. Friendly visible human-machine interface,it is easy to operate and watch
6. This equipment has completely diagnosis system,you can get wrong massage by touch screen,easy for maintain.
