Body Collision Repair

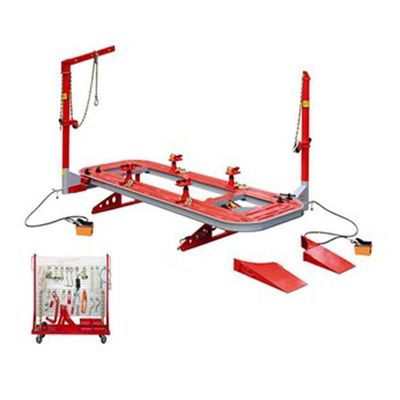

Body Collision Repair SINF9



1. The platform is spliced with high quality steel plate through carbon dioxide welding, with high strength and good rigidity.

2. The tower are 360 degrees movable and flexibly, the cylinder works vertically without any components forces consumption, powerful and accurate tensile force.

3. Hydraulic system imported from American POWERTEAM with original packing makes it powerful and gives it a long useful life and a low failure rate.

4. Various measuring systems with high accuracy can be selected

Technical Specification

Working Platform length 5200mm

Working Platform width 2000mm

Working Platform height 570mm

The max working presure of hydraulic system 70MPa

The max lifting force of the tower cylinder 95KN

The pulling range of the tower 360

The pressure of the air source 0.6~0.8MPa

M lifti i Max lifting weight 3600kg

Equipment gross weight 2200kg

Quantity in 20 feet container 7pcs

SINF9
