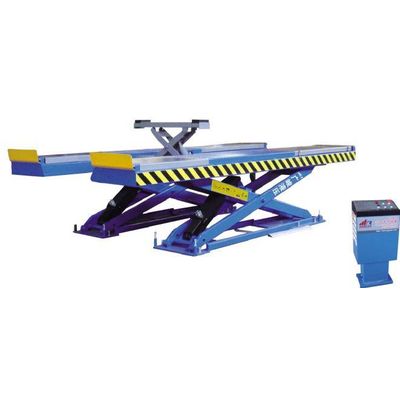

Professional alignment scissor lift

Luxurious scissor wide-platform structure with super synchronization Level can be well adjusted to meet the need for wheel alignment Device perform stable and reliable work is relayed on imported hydraulic, pneumatic and electrical components

The pneumatic double-teeth self-locking system and anti-explosion pipe structure will automatically open when lowering , which ensure the safety of the device. Ingenious and unique sliding system and closed platform, also don't need ground pits. With trolley guide rail and can optional add the second lifting jack The position of the front wheel turning table (optional part) is adjustable and suitable for various type of automobile

Lifting height 79"/2000mm

Secondary lifting height 20"/500mm

Min Height 13"/330mm

Overall length 165"/4200mm

Platform width 24"/620mm

Width between two platforms 32"/800mm

Air source pressure 5-6kg/Cm2

Lifting time for large scissor 30seconds

Lifting time for jack 20seconds

Motor voltage 220V or 380V

Frequency 50Hz or 60Hz

Phase 1ph or 3ph

Net weight 3760lbs/1706kg
