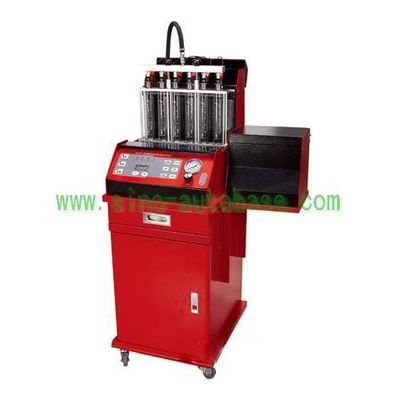

Fuel injector cleaner&tester machine (HT-6M)

Technical Parameter

Dimensions: 850mm u00d7 510mm u00d7 450mm

Power: 85-132vac/170-264vac 47-63Hz

Fuel tank capacity: 4.5L

Test tube capacity: 120CC

Ultrasonic wave frequency: 32KHz

Ultrasonic wave power: 100W

Rotate speed: 0-9975r/min, step: 25r/min

Pulse width: 0-30ms, step: 0.1ms

Count: 0-9975r, step: 25r

Time: 0-9975S, step: 5S

System pressure: 0-6.2kg/c㎡ (variable regulated）

System flow: 4L/min

Test cylinder: 6 (max)



Specifications & Functions

SmartAuto Fuel Injector tester & Cleaner mainly apply to fuel injector testing, cleaning and quality analyze. The functions as following:

1、 To test and analyze the injecting state.

2、 To test the injector dribbling.

3、 To test the injecting angle and atomizing.

4、 To test the injecting volume.

5、 To test the injector uniformity.

6、 To test conduct the physical and chemical cleaning of the blocked or trouble injector, ultrasonic cleaning, test cleaning and on-vehicle cleaning.

7、 To test the open and close injecting pressure of the injector.

8、 Can clean the engine without dismantling (choose matched connector).

9、 Can operate the auto static test、dynamic test and selective test with the injecting dribbling、angles、atomization、uniformity of one or more(1-6) injectors, can simulate any state of the vehicle to observe the complete process of injectors.

10、Can operate automatically、reversely、and ultrasonic cleaning with one or more injectors at different

state, such as high resistor、low resistor、electric voltage and electric current.

11、Can test by count mode and timing mode, also have backlight, can observe the injectors clearly.

12、If use new type injector, just need choose the matched connector and replace the O-ring.

13、It adopts to united design of microcomputer skill and intelligent engine, and suppose driving power and specified injecting protection system, ensure to operate the test and clean at any mode such as high resistor、low resistor、electric voltage and electric current.

14、Have powerful、safe and time ultrasonic cleaning system.

15、It uses environmental protective and safe test fluid and cleaning detergent, accords with Montreal Agreement, innocuous、with no peculiar smell、non-volatile and can be reclaimed repeatedly and effective, itu2019s innocuous with the operators.
