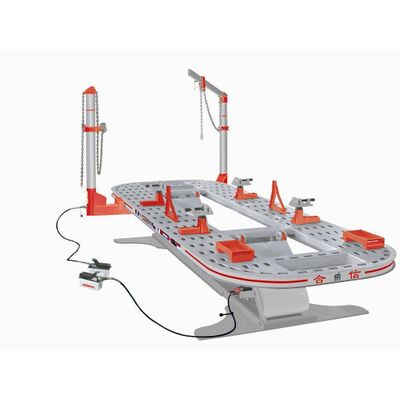

autobody repair frame machine/ atuo body collision repair system/car bench/car collision repair

Feature:

1.Platform is cutted by large-scale numerical control panel once shaping and smooth cutting.

2.Platform be made of high-quality manganese steel plate by carbon dioxide gas shielded arc welding from welding, high strength, rigidity, and many technology-holes can be easily arranged anchor device.

3.The vertical lift platform can be raised to a height of 300-500mm that is accessible to any accident handing vehicle without cranes, taking care of different heights.

4.Reasonable platform height makes operation conveniently. Humanized Design for the main clamp can realize the adjustment of main clamp upper and lower, before and after between the least bit.

5.The wealth of tools to prepare, for the arbitrary choice of the operator.

6.At the same time, two-pulling towers composite pulling, and more reflect the superiority of partial pull-out operation.

Specifications:

Platform Length-------------- 6000mm

Platform Width-----------------2100mm

Platform Height----------300-1050mm

Max. Lifting Weight-----------3000kgs

Total Weight---------------------3000kgs

Tower Max. Tension--------------95KN

Hydraulic Pressure-------------70MPa

Pneumatic Pressure-----------0.8MPa

Tower Working Rang------360degree

Total Cubic Measure-------------8CBM
