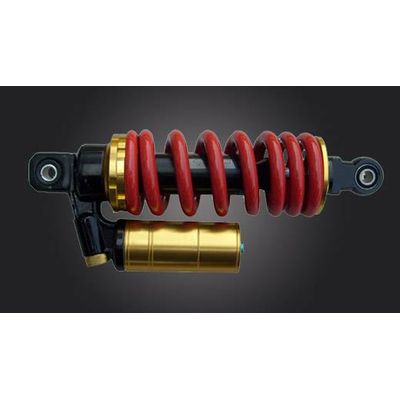

YRC01 Shock Absorbe for ATV

1.Total length: 270mm_300 mm

2.Upper bush:Φ 10.1*21

3.Bottom bush:Φ10.1*21

4.Dia of piston: Φ12.5mm

5.Dia of fuel tank: Φ36mm

6.Ballonet:External

7.Spring adjust:Adjustable

8.Dia of spring: 12mm

9.Damp adjust:No

10.Purpose:Small dirt motorcycle

High-flow hydraulic circuits and regulations



Ultra-Lightweight Design



High-Flow Dual Compression Regulation



New Low-Friction Internals & Parts

36mm or 46mm inside diameter hard anodized aluminum body with integrated PTFE coating mated to low-friction internal components

Sturdy 16mm induction hardened shafts

Multi-seal, low-friction seal head design that prevents debris and water infiltration, therefore extending the shock life in harsh conditions

Proprietary oil blend with ultra-low friction light viscosity grade which is ultra-resistant to high operating temperatures

High-pressure nitrogen valve core design rated at over 800 psi to prevent nitrogen leaks from peak pressure generated upon major hits

ADVANTAGES

Race-ready performance and maximum traction in all conditions

Wide range of highly effective and precise adjustments

Ultra-lightweight design, all components are optimized for weight savings
