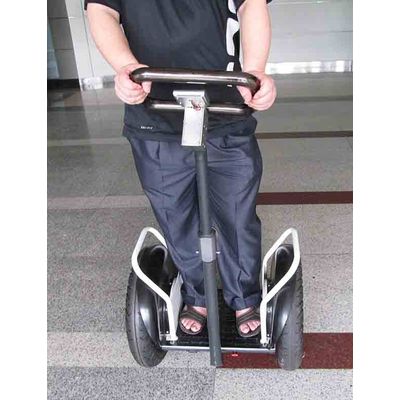

Automatic Balancing Electric Vehicle,two wheeled electric car

Name:Automatic Balancing Electric Vehicle,two-wheeled electric car

Motor power:350W

Max speed:20km/h

suitable for going out





Motor power: 350 (w)

N.W: 38 (kg)

maximum speed: 20 (km/h)

Cruising Mileage: 30Km

Loaded Weight: 120KG

Climbing Angle: 40 Degree

Battery: 33V 10A Lithium Battery

Turning Radius: 0M



The two self-balancing electric vehicle movement flexible, intelligent control, easy operation, the advantages of saving energy, green, turning radius is 0. So it applies to run in a small space in shopping malls, international conference or exhibition sites, stadiums, office buildings, large parks and squares, eco-tourism scenic spot, living in urban residential quarters and other indoor or outdoor occasions as people in the short-distance means of transport. In addition, after appropriate modifications, can be self-balancing electric vehicle converted into two self-balancing robot.

Two structure of the two self-balancing electric vehicle, making it the center of gravity in the fulcrum of the next, so the non-control state (or static) for an unstable system. However, you can use the principle of the inverted pendulum system control, control of the microprocessor so that it can, such as inverted pendulum is as stable at an equilibrium position, and able to maintain a balanced state of normal operation requirements in accordance with user instructions. Two self-balancing electric vehicle is actually a combination of a linear inverted pendulum and rotary inverted pendulum, does it control the inverted pendulum system are basically the same. Image, self-balancing electric vehicle works like a human walking.

For people, when the body's center of gravity forward tilt and loss of balance, through their own sensory organs can detect their own body tilt (angle), and he will make a response - a step forward to prevent fell to the ground. If the body has to lean forward in order to maintain balance, people will step by step to move forward. Therefore, if the two legs of the adult by the motor drive the wheels, coupled with the ability to measure the body relative to the horizontal inclination size and velocity sensors, and finally through the control of the microprocessor will be able to achieve the body self-balancing effect . So when the person standing in the car body to drive body together to forward (or backward) can be achieved electric car forward (or backward).
