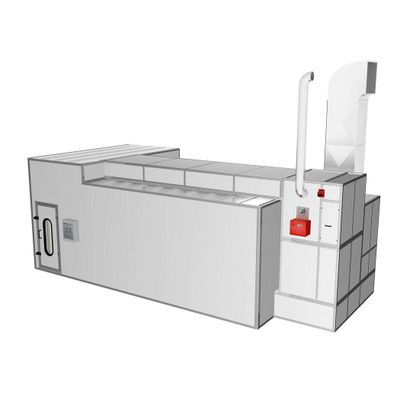

BZB-1000

1.Specially designed to meet the actual needs of the clients from Africa.

2.It takes advantage of pretty practical configurations, thus being safe, energy-saving, and eco-friendly. With high price to performance ratio, it is suitable for ordinary consumers.

3.This product is generally applicable for the car repair factories within the countries or regions where the environmental protection is not highly demanded.

4.By lowering the total power and reducing the energy consumption, our product helps customers save great cost.

Features:

1.This series car spray booth is manufactured in accordance with African Standard.

2.It comes with two 3KW centrifugal type fans with external motor. As well as one 4KW centrifugal type supply fan with external motor. It can lower the total power and reduce the energy consumption, thus helping customer save much cost.

3. Mounted with 32pcs 36W standard ceiling light, accompanied with 16pcs 36W side light. The back wall is installed with 6pcs 36W wait side light. The intensity of illumination reaches 1400Lux. No ghosting is produced during the paint spraying operation.

4.The electric control box puts to use the touch screen, featuring humanized design and gorgeous appearance. The electronic components of the electric control box come from Siemens or Schneider brand, thereby providing extremely trustworthy.

5.The heat exchanger is made from high quality SUD304 stainless steel, which provides outstanding heat-transfer efficiency and also saves much energy. The 60mm anti-explosion vents are utilized for safe use.

6.The oil tank is supplied with the volume of 50L. By utilizing the transparent oil-quantity display device and the fuel-oil filter, the quantity of diesel oil can be watched at any time.

7.It is clean to choose natural gas as the heating energy.

Specification:

Inside Size(mm): 6900u00d74000u00d72650

Outside Size(mm): 7040u00d75600u00d73430

Front Door(mm): 3000(W)u00d72600(H)

Total Power(kw): 15kw



Cabin System

1) Wall panel: EPS colorful 0.376mm steel skin panel, 50mm thick, tongue & groove style, compound construction, aluminum-alloy frame, anti-flame and heat-insulation.

2) Roof panel: galvanized steel.

3) Basement: Galvanized steel sheet and square steel pipe assembling, Two Grid& Three Embossed Plate, Two Ramps made of embossed plate, 2000(L)mm. Height: 280mm.

4) Front Door: 3 folded glass door.

5) Glass: Main door and emergency door glasses are toughened glass.



Air Circulation System

1) Inlet Fan Model: YDW-4.5AL; 3kw, Capacity: 22000m3/h, 2 sets.

2) Outlet Fan Model: YDW-4.5L; 4kw, Capacity: 14000m3/h, 1 set.

3) Load Air Speed: 0.36m/s; Air recycling times: 300 times/h.

4) Exhausted ducting: 6m air outlet ducting and one 90 degree elbow and one 30 degree elbow. Chimney: 4m stainless chimney and one chimney cap.

Lighting System

Ceiling Light: 8sets*4pcs=32pcs 36w Philips Lamp; bottom light: 16 pcs 36w Philips lamp; back light: 6 pcs 36w, 1400 Lux. Ballasts Professional and durable. Light glasses are toughened glass.

heating System

Italy Riello G20 diesel burner, heating capacity 180000Kcal/h, 10N Switzerland original electric damper motor can automatically achieve from spraying to baking cycle.

SUS304 stainless steel 1.5mm thick heat exchanger, argon arc welding, matching explosion-proof vent.

Max temp: 80, heating time: 6-8min(20-60), fuel consumption: 6-8kg/vehicle.



Lighting System

Ceiling Light: 8sets*4pcs=32pcs 36w Philips Lamp; bottom light: 16 pcs 36w Philips lamp, 1000 Lux. Ballasts Professional and durable.



Controlling System

Micro-Computer Programme Controlling, main circuit has multi-protection. Lighting switch, spraying, risen-temperature spraying, baking, baking temperature, time setting, failure indicator, temperature controller, temperature limit controller, emergency stop, breakdown alarm.(All electrical are suitable for CE Standard.)



Environmental System

Multi-layers fiberglass filter and active carbon.
