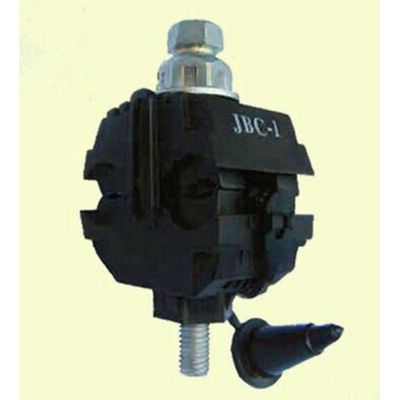

IPC Insulation Piercing Connector

This type insulation piercing connectors are suitable for all types of LV-ABC
conductors as well as connections to service and lighting cable cores.
When tightening the bolts, the teeth of the contact plates penetrate
the insulation and establish a perfect contact.
The bolts are tightened until the heads shear off.
Stripping of insulation is avoided. Suitable for aluminum and copper conductors and
components not losable, end cap attached to body, Insulation material made of
weather resistant glass fiber reinforced polymer,
contact teeth made of tinned brass or copper or aluminum,
bolt made of dacromet steel.
insulation piercing connector
TYPEEquivalent
typeApplicable conductor range mm
Main line
section mmu00b2Branch line
section mmu00b2
QT756
QT041
QT101
QTEP
QTEP
QT2-95*
QT2-150*
QT3-95
QT4-150
QT6
QT240
JJC888
JJC-1

JJC-2

JJC-3
JJC-4
JJC-5
JJC-6
JJC-7
JJC-8
0.75-6
6-10
1.5-2.5
16-95
1.5-10
16-95
50-150
25-95
50-150
120-240
95-2400.75-6
1.5-6
1.5-10
1.5-10
6-35
4-35(50)
6-35(50)
25-95
50-150
25-120
95-240
* fits up to this conductor size, but current rating max of connector is lower tha
possible cable ratings.
Note: 1.The stainless steel bolts and nuts, washer can change it according
requirement.
2.The tin-plating copper teeth and aluminum alloy teeth can change it
according requirement.
