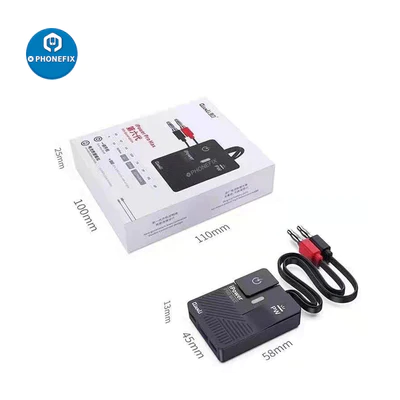

iPower Pro Switch Box DC Power Cable for iPhone 6 6S 7 8 X Turn on

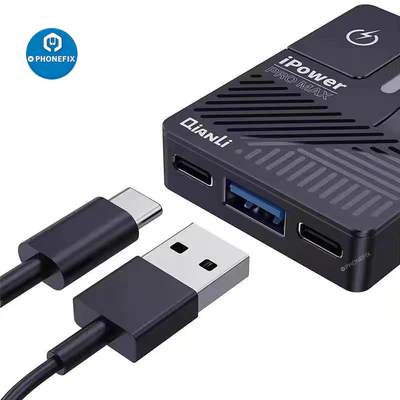

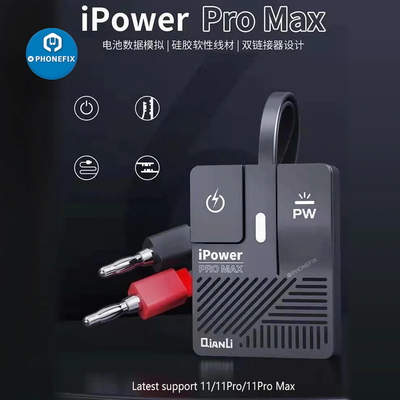

2021 latest Qianli iPower Pro Max Power cable for iPhone 6-11 Pro Max repair.

iPower Pro Phone Repair Power Supply Test Cable with ON/OFF Switch Button for iPhone 6 6P 6S 6SP 7 7P + 8 8P X

Note: iPower Pro Cable Connector Buckle haven't be soldering with cable, need DIY doing welding

DIY Connection Weld Wire Sequence
( Note: the color sequence of other models are same )

Combination iPhone Models :

• 6P + 6_4.7
• 6S_6SP + Clamp
• 7_4.7 + 7P_5.5
• 8 / 8P + X

Connection Wire Color Remark :

• VCC: Red
• DM: White
• DP: Green
• GND: Black

Function :

• New design. at the same time boot 6 iPhone.
• iPhone motherboard power consumption will be low.
• One key single board trigger function, prevent the power cable from reverse connection to burn handset.
• Designed with double connection port, which is strong and will not fall off.
• Convenient for flipping and measuring motherboard without loss of electricity and won't fall off
• A key boot feature, instead of the traditional boot with tweezers.
• The latest iPhone boot control power cable, replace the old iPhone boot method ( tweezers)

If you need support for iPhone 8, iPhone 8 Plus, iPhone X in the future, you only need to buy a compatible iPower cable alone.

Compatible models: iPhone 6 6P 6S 6SP 7 7P + iPhone 8 8P X

The iPower power cable can limit the maximum current of IC chips to protect handset, refit the 2A head power cable

Note:

1. iPower PRO MAX Cable connector buckle is not welded and needs to be welded by yourself.

2. Due to the shortages in the markets, 11/11pro/11 pro max flex connectors of this batch don't cntain connector for boot-up(one button to boot unsupported). Solder postion is reserved, please solder the corresponded connector to use it.


 Package List :

• 1 x iPower Pro Power Switch Cable
