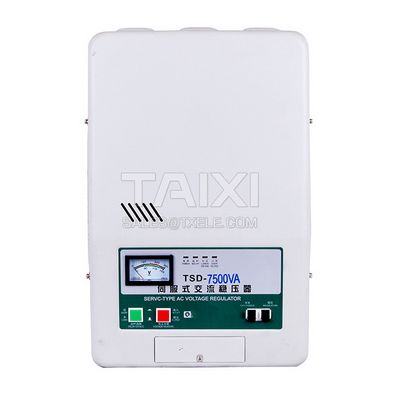

TSD Wall Mounted Voltage Stabilizer

Product Overview
TSD Wall Mounted Automatic Servo Voltage Stabilizer are perfectly designed on the basis of the SVC Voltage Stabilizer, possessing the protection against time-delay, over voltage and under voltage and the free switching between the electric supply and voltage stabilization, etc. It adopts the hanging type installation, which can effectively save and make use of the space. The soft overall color of streamline gives people a bright and new look. It can provide high-precision and stable power supply to computers, copiers, SPC telephone exchanges, industrial precision electrical appliances, medical equipment, household appliances and other equipment. Wall Mounted Voltage Stabilizer Meets the standard: Q/ZT78

Main parameters and technical performance
Input voltage: 150V~250V
Output voltage: 220V±3% 110V±3%
Temperature rise: <60°C
Overvoltage: 246V±4
Undervoltage: 184V±4
Relative humidity: <90%
Ambient temperature: -10°C~+40°C
Frequency: 50Hz/60Hz
Negative power factor: 0.8
Waveform distortion: Non-lack fidelity waveform
Insulation resistance: >5MΩ
