Electric Power Overhead Line Fault Indicator

    Installation  Adapter of Overhead  Line Fault Indicator

  The signals description of indicator

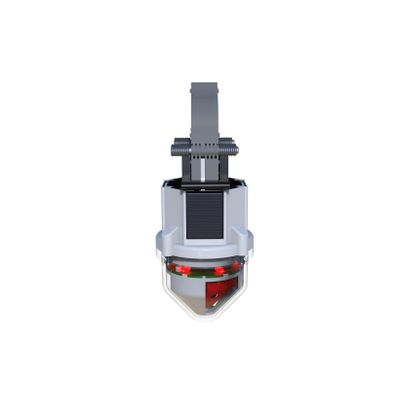

    The fault indicator type Flag SNV308.1 has six ultra-bright, 360°3colors LED pointing to the around for fault indication. Additionally it ha a yellow LED pointing to the bottom to signal its operational status.
1) short circuit permanent fault indicating: Six 3-color led will shine red color, and four times, every 2 second,And turn to red flag at same time.
2) short circuit temporary fault indicating: Six 3-color led will shine green color, and four times, every 2 second,And turn to red flag at same time.
3) Earth Fault indicating:Six 3-color led will shine Blue color, and four times, every 2 second. And turn to red flag at same time. yellow state Led light: Battery voltage too low:Shine 1 time, every2second

Battery voltage low:  shine 2 time, evey2second
Wireless setting state: shine 4 times, every 2 second

Operational settings and functions of the SNV308.1
The operational settings of the fault indicator can be adjusted and read out with the remote control , Flag type
SNV306.1. Detailed information about all functions of the indicator basic settings like trip current and advanced
settings like the auto re closer settings can be found in the instruction manual for the remote control, Flag type
SNV306.1. Information how to change or read out the settings can be also found there.

Careful handling
When moving the adapter down to the ground, please move it downwards vertically. When placing it
onto the ground horizontally the connection to the hot stick might break.
