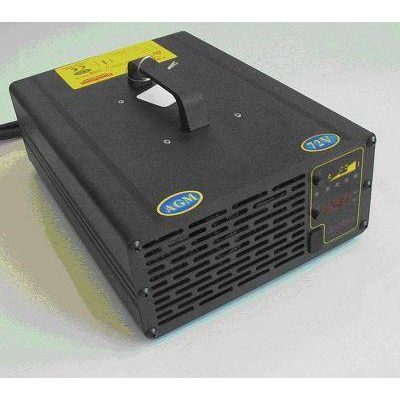

Intelligent Pulse Charger-II

CHPC intelligent pulse current charger is a special design product, to meet charger requirement of power battery on the electric vehicle. It uses advanced soft-switch technique, and has features of small size, high efficiency, stability & reliability, and long life. It also has protection functions of battery reverse connection, output short circuit, input low voltage or over voltage, and over heat.

Embedded CPU can accurately check several status of battery. Advanced and intelligent multi-section charging mode can avoid lack charging or over charging, and reduce water-lose phenomenon because of charging as far as possible, and avoid electrode board vulcanization because of lack charging, to extend battery life cycle greatly.

Technical Index

Input Voltage: AC187V~AC253V

Output Voltage: See specification table

Output Current: See specification table

Full Load Efficiency: not less than 88%

Protection Grade: IP32

Aseismic Grade: SAEJ1378

Ambient Temperature: -20 Celsius degree to +50 Celsius degree

Storage Temperature: -40 Celsius degree to +80 Celsius degree

Certification: CE

Product Specification

Type Battery voltage Charge current

CHPC-4835C 48V 35A

CHPC-6030C 60V 30A

CHPC-6035C 60V 35A

CHPC-7225C 72V 25A

CHPC-7230C 72V 30A

CHPC-9620C 96V 20A

The chargers are mainly used for electric vehicle,electrical golf carts,sightseeing carts,electrical scooters.
