Aluminium Core PCB

Aluminium Core PCB is a metal-based copper clad laminate with good heat dissipation function. Generally, the single panel is composed of a three-layer structure, which is a circuit layer (copper foil), an insulating layer and a metal base layer. Also used for high-end use is designed as a double panel, the structure is circuit layer, insulation layer, aluminum base, insulation layer, circuit layer. A very small number of applications are multi-layer boards, which can be made of ordinary multi-layer boards combined with an insulating layer and an aluminum base.

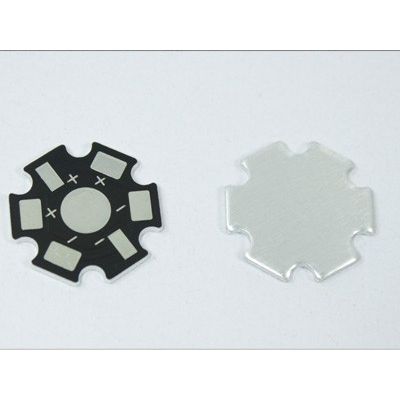

The LED Aluminium Core PCB is the PCB, which is also the meaning of the printed circuit board. The material of the circuit board is aluminum alloy. In the past, the material of our general circuit board was glass fiber, but because the LED heat is large, the circuit board for LED lamps is generally Aluminum substrate, capable of fast heat conduction.

aluminum pcb prototyping Characteristics

With good thermal conductivity, electrical insulation performance and machinability, the Aluminium Core PCB has the same thickness and the same line width compared with the conventional FR-4. The Aluminium Core PCB can carry higher current and the Aluminium Core PCB can withstand voltage. 4500V, thermal conductivity greater than 2.0, mainly based on Aluminium Core PCB in the industry
