Circular Box / Conduit Box / Splice Box / Tee Box

Specifications

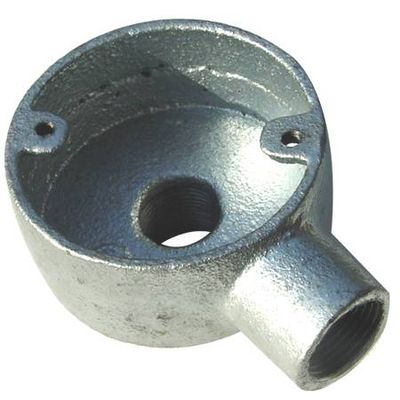

Metallic Circular Conduit Box

1.Professional Manufacturer of Conduit Box

2.Standard: BS4568/EN50086

3.Material:Cast Iron

1)- Leading Professional Manufacturer of Malleable iron conduit box

2)- Certificate: ISO, SGS, ITS, BSI

3)- Burj Dubai supplier, we supplied conduit box to Burj Tower which the World's tallest Building in Dubai since 2005~2008

4)- Size: 20mm,25mm,32mm

5)- Thread: DIN, BS, NPT, G Thread, Metric

6)- Standard: BS 4568 Part 2, BSEN50086-2-1,IEC670:1989

7)- Materials: Malleable iron

8)- Finishing: Hot Dipped Galvanized, Electro Galvanized, Epoxy, Black

9)- Famous Brand Enterprise in Hebei, China

10)- METEX brand conduit box supplied to South Africa for 2010 World Cup Gym and Burj Dubai (Burj Khalifa)

Model

Small

60.3mm internal diameter x 25.4mm deep. Tapped M4 at 50.3mm centres.

Large

81mm internal diameter, for conduits of 20 & 25mm dia = 35mm and 32mm dia = 39mm deep. Tapped M4 at 71.5mm centres.

Small Special Deep

60.3mm internal Diameter x 62mm deep. Tapped M4 at 50.8mm Centres.

All the above models are available with tapped hole in the base for earthing screw. Covers and fixing screws need to be ordered separatel
