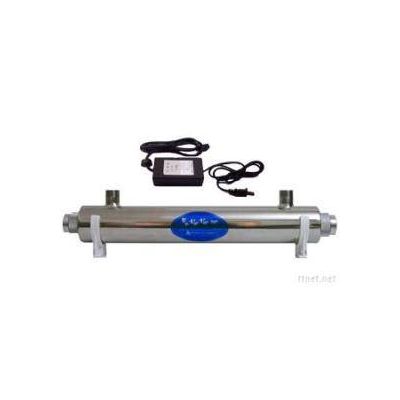

UV sterilizers

Specifications



Model:UV040

Flow Rate:4GPM(1T/H)

Power:17W

Dimensions: L450*W73*H110mm

Inlet/Outlet Size:1/2#

Max Operating Pressuer:0.8Mpa



Model:UV060

Flow Rate:6GPM(1.3T/H)

Power:23W

Dimensions: L520*W73*H110mm

Inlet/Outlet Size:3/4#

Max Operating Pressuer:0.8Mpa



Model:UV080

Flow Rate:8GPM(1.8T/H)

Power:28W

Dimensions: L650*W73*H110mm

Inlet/Outlet Size:3/4#

Max Operating Pressuer:0.8Mpa



Model:UV012

Flow Rate:12GPM(2.7T/H)

Power:40W

Dimensions: L950*W73*H110mm

Inlet/Outlet Size:1#

Max Operating Pressuer:0.8Mpa

Product Specifications /Features

Features:



1.Product specification is complete,flow range:0.1-500T/H.



2.Over-flow reactor chamber using 304/316L stainless steel,automatic welding,the high-brigtness polished.



3.Low-pressure high-intensity mercury lamp,life of 9000-13000hours,supporting high-efficiency electronic ballast,sterilization rate as high as 99.99%.



4.System design criteria used by the U.S.NSF55.



Application:



Living water,Drinking water,Pure water,Mineral water,Swimming pool,Landscape

water,Circuating cooling water,Food,Cosmetic,Medicne,Sewage treatments.
