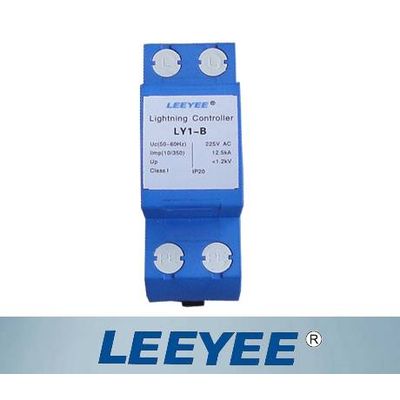

LY1-10/350 4P Class B OBO Type surge protective device

LY1-10/350 surge protector series Switch type high-energy surge protector.Apply for power supply system below 380VAC.protection zone1.

1,Could be replaced for the module not need rower cut.

2,Maximum current of endure the lightning stroke 50kA(10/350).

3,Time of response<100ns.

4,The color of visible window shows operating status,green means normal,red means abnormal.

1.LY1-10/350 surge protector

2.OEM ODM surge protector

3.best quality surge protector

4.Class B surge protector

5.ISO CE

Techinical parameters LY1-10/350

Rated operating voltage Un(V~) 220V 380V

Maximum continuous operating voltage Uc 275V 320V 320V 385V

Voltage protection level up(V~) KV 1.2 2.0 2.2 2.6

Nominal discharge current In(10/350)KA 15 25 25 50

Response times <100

Test standard GB18802, IEC61643-1

The cross section of L/N line 16

The cross section of PE line 35

Fuse or switch(A) 63A,100A

Operating environment u00b0C '-40u00b0C~85u00b0C

Relative humidity 25u00b0C

Installation Standard rail 35mm

Material of outer covering Fiber glass reinforced plastic
