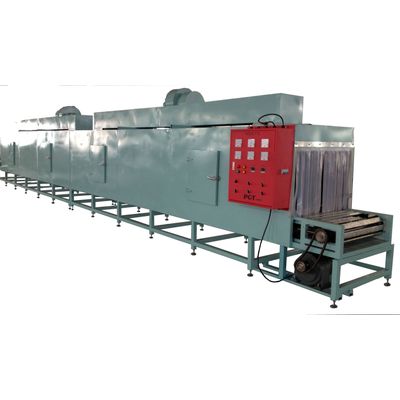

oven

Technical parameters:

1.Input:380Vac 50/60Hz

2.Range of temperature:55 degrees Celsius;

3.Temperature error:2 degrees Celsius;

4.Rate of heating:15 min;

5.Transfer speed:0.01~1m/s(adjustable)

1.Air circulation system is consisted of low noisy fan and optimal air duct;

2.Forced air circulation channel,can evenly send hot air to everywhere of sealed space by inside passage to control the internal temperature and gradient in sealed space;

3.Setting temperature freely;

4.Adoption of automatic temperature control function is made to achieve stable heating and precise temperature adjustment,which may meet different requirements;

5.Machine was provided with forward and reverse transmission.

Model

PGT-1200A

PGT-800A

PGT-600A

Application:

apply to epoxy curing for small capacity & medium capacity & big capacity batteries
