Generator Neutral Earthed Through Resistance

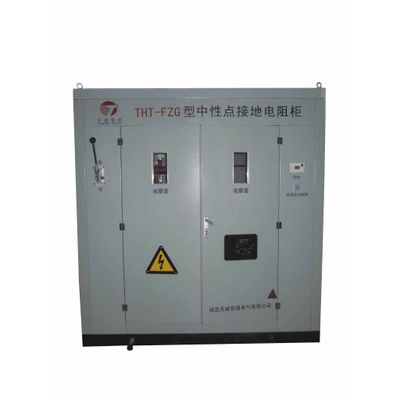

THT-FZG Neutral Grounding Resistors cubicle is a complete set of equipment specially used for the power generator's neutral point adapts the high resistance grounding.

Shall be able to carry the rated current for the rated time with temperature rise not exceeding 760 Deg.C.

Available for systems rated 6kV to 24kV

Enclosure: Standard ventilated enclosures are painted or galvanized, with stainless steel,hot-dipped galvanized, and Aluminum-zinc plate steel options

Limits the ground fault current to a high level (typically 50 amps or more)

Quickly clear the fault, usually within a few seconds.

Testing report certificated by : Xi'an High Voltage Apparatus Research Institute

Provide single phase grounding transformer

The neutral grounding resistor cubicle (NGRs) are completely assembled, prewired, and tested at our facility Fully factory assembled - no field assembly required Designed, rated, manufactured and tested in strict compliance with IEEE-32,DL/T 780-2001

Our products have been exported to more than 40 countries and regions, such as Turkey, Russia, India, Malaysia , France and so on.

8.Ordering notes:

aRated voltage of the system

bGrounding transformer capacity

cMaterial of the cubicle, IP level, and installation.

dRated time

eResistance value

fRequire the intelligent controller or not.
