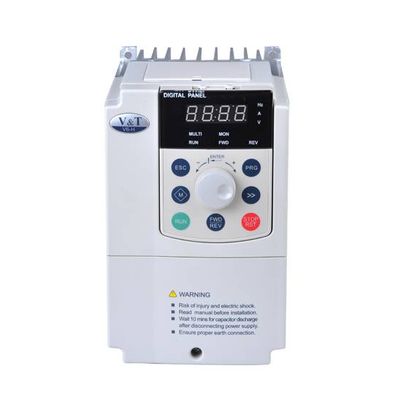

V6-H high performance vector control and torque control inverter

V6-H series frequency inverter is based on high performance vector control and torque control technology, modular software and hardware features. This high performance V6-H frequency inverters can meet the demands of printing, lifting, crane, papermaking, chemical fiber, elevator, mill, packaging and other high-end industrial applications.

Available voltage rage:

380 VAC - 480 VAC (323 VAC - 528 VAC): 380 V, 400 V, 415 V, 440 V, 460 V, 480 V



Vector Control 1:

Offering excellent vector control performance and insensitive to motor parameters.

Startup torque: 0.50Hz 180% rated torque (high torque at low frequency)

Speed adjustment range: 1:100

Speed stabilization precision: +- 0.5%

0.50Hz controlble motor stable operation with 150% rated torque.

Vector Control 2 (Without Encoder Speed Feedback):

Precise speed sensorless vector control technology realizes AC motor decoupling, enabling the DC motorization of operation control.

Startup torque: 0.25Hz 180% rated torque (strong torque at low frequency)

Speed adjustment range: 1:200

Speed stabilization precision: +- 0.2%

0.25Hz controllable motor stable operation with 150% rated torque.

Vector Control 2 (With Encoder Speed Feedback):

Startup torque: 0.00Hz 180% rated torque (strong torque at low frequency)

Speed adjustment range: 1:1000

Speed stabilization precision: +- 0.02%

Open Loop Torque Control Mode:

Independent current loop control to realize true torque control, supporting online switching of torque control and speed control.

Torque precision: +-5%

Torque response time: <20ms

Closed Loop Torque Control Mode:

Independent current loop control to realize true torque control, supporting online switching of torque control and speed control.

Torque precision: +-5%

Torque response time: <10ms
