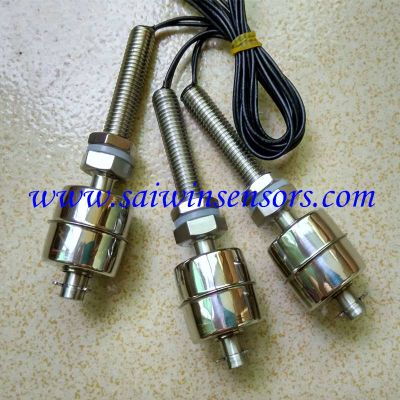

45mm long screw stainless water level controller for water tank

Product Description

Level Switches and Level Sensors Feature:
1. Electronic controllers relays and converters can be designed for your special application.
2. Various materials can be chose:PP;Nylon;NBR;SUS304;SUS316;SUS316L,etc
3. Multiple level points combination with temperature sensors
4. Adjustable switch height feature is available
5. A variety of standard floats are available: ID(7.2-22mm);OD(15-75mm),Height(5-75mm)
6. Reliable long-life up to 108 operation times.
7. Various models operate at temperatures ranging up to 250C
8. Units available to withstand pressures up to 217.5PSI
9. Excellent insulation; hermetically sealed reed switches
10. Switches available for use in harsh environments, max operation parameter 50W,250VAC,1.5A

Product Feature

Date Scan:1A1
Max Contact Rating:10W
Max Switch Voltage:110VDC
Max Switch Current:0.5A
Min Break Voltage:220VDC
Max Carry Current:1.0A
Max Contact Resistance(do not include the wire):100Ohm
Temperature Rating:-30-250
Float Ball Material:SUS304/SUS316
Float Body Material:SUS304/SUS316
Screw Nut Material:SUS304/SUS316
E-Ring Material:SUS304/SUS316
O-Ring Material: Silicon

Date Scan: 2A1
Max Contact Rating: 50W
Max Switch Voltage: 220VDC
Max Switch Current: 1.0A
Min Break Voltage:300VDC
Max Carry Current: 3.0A
Max Contact Resistance(do not include the wire): 100Ohm
Temperature Rating:-30-250
Float Ball Material:SUS304/SUS316
Float Body Material:SUS304/SUS316
Screw Nut Material :SUS304/SUS316
E-Ring Material:SUS304/SUS316
O-Ring Material:Silicon
