New Design Power Logo Push Button Switch

New Design Power Logo Push Button Switch

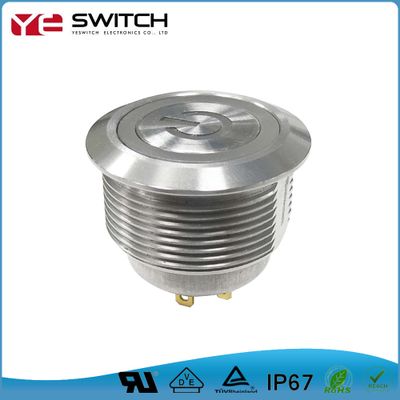

This 16MM Metal Switches is one of our Metal Switches series. Its body type is made of stainless and it is flat. The installation of this Momentary Switch is 16mm. It`s button and light type is power logo, flat. Furthermore, the LED color could be white, red, yellow, green, blue. The LED light could be dual color led, it is red&green. The button type and light type of this Waterproof Push Button Switch is power logo and flat.

Moreover, This Metal Push Button Switch could enjoy a long life character. Its electrical life could reach 200,000 make-and-break cycles at full load and the mechanical life is 1,000,000 cycles. What`s more, this Push Button Switches also have pass UL, IP67, ROHS certificates.

SPECIFICATIONS:

RATING: 2A/36VDC

ELECTRICAL LIFE: 200,000 make-and-break cycles at full load

MECHANICAL LIFE:1,000,000 cycles

INSULATION RESISTANCE:1,000 mΩmax.

DIELECTRIC STRENGTH: 2,000V RMS@sea level

CONTACT RESISTANCE:50 mΩmax

OPERETION TEMPERATURE: -20°~+70°

OPERATION PRESSURE:4.5N±1.5N

INGRESS PROTECTION:IP67

THICKNESS: 8.0MM(Max)

Current limiting resistor is required to limit LED forward current to 20mA
