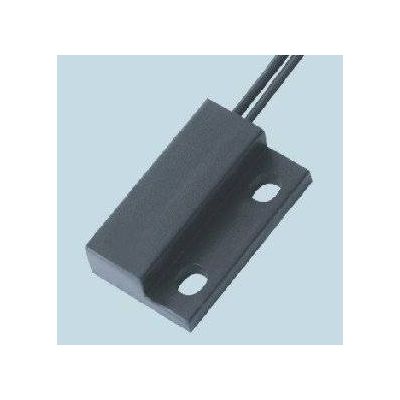

rectangle proximity switch

Features

2 parts magnetically operated proximity sensor;

Shrouded terminal accept SL series connector;

Case design allows screw down or adhesive mounting;

Customer defined sensitivity.Benefits

No standby power consumption

Operates through non-ferrous materials such as wood, plastic or aluminum;

Stable performance & Long life.Applications

Position and limit sensing

Security system switch

Linear actuators

Technical Specifications

Contact FormNormal OpenNormal OpenChange OverNormal Close

Contact TypeSPSTSPSTDPSTSPST

Switching PowerW - Max.107055

Switching VoltageV - Max.DC200/AC140DC200/AC250DC175/AC125DC175/AC125

Breakdown VoltageV - Min.250400200200

Switching CurrentA - Max.0.51.0DC0.4/AC0.28DC0.4/AC0.28

Carry CurrentA - Max.1.01.750.50.5

Contact Resistance - Max.0.20.20.20.2

Insulation Resistance - Min.109109109109

Operating Temp.C-40 ~ +85-40 ~ +85-40 ~ +85-40 ~ +85

Material of CoverABS

CableUL1007 - AWG24 PVC

Operation

1.For Ferrite magnet, the max. sensitive distance D is 12mm. (Standard: 4-6mm, 6-8mm & 8-12mm);

2.For Neodymium Iron Boron (NdFeb) magnet, the max. sensitive distance D is 25mm. (Standard 8-12mm, 12-16mm, 16-20mm, 20-25mm);
