Weather-protected Switch

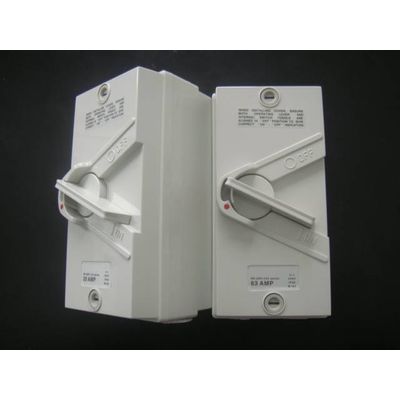

UKF Series Weatherprotected Switch



The UKF Series of Weatherprotected isolating switch is a robust range of switches suitable for virtually any external application.



Included in the range are single, double and triple pole switches from 20 to 80 Amps. The base mounted mechanism provides for easier termination and more wiring room. Switch dimensions are 165mm longth, 82mm width, 85mm highth. Standard colors are grey&white.



Fixed Earth and Neutral connector bars with dual clamping screws per tunnel provide equal as tripping lengths and secure clamping for all cables, Terminal bore size is 6.6mm.



A safety feature for mounting switches to metal structures is insulating caps that cover base mounting screws to totally protect them from any live cables.



Each unit is supplied with screwed conduit plugs and screwed reducers for easy connection to 25mm or 20mm conduits and screw caps. Screw caps must be installed to insure IP Rating. The impact resistant base and cover will survive the hardest knocks in almost any installation. The two sections are sealed with one piece weather seal gasket.



For security a 7mm diameter hole is provided for padlocking the lever in the OFF position. Deep mounted barriers protect the operating lever from physical abuse or accidental switching. All units comply to IEC60947-3.

Weather-protected Switch

Professional manufacturer

Competitive price comply high quality

Protection degree: IP65
