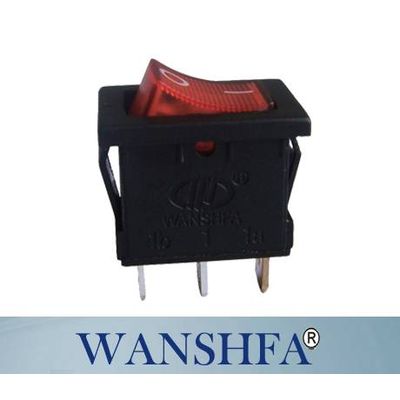

KCD1 Waterproof red Rocker switch

KCD1 Waterproof red Rocker switch

1.6A 250VAC/10A,15A 125VAC T85

2.on off, om off on,on on

3.CE,CQC,CCC

15 years' experience of manufacturing in this field.



External AppearanceVisual measurement: surface of metals cleanness, no rust stain, no cladding shell off

Temperature-25~ +70u00b0C

Relative Humidity( 40u00b0C)

Normal Load 1A AC 250V

Withstand VoltageAC250V (50Hz)/1min

Travel 4mm

Service Life 100,000 Cycles

Operating Force 4N

Center Distance2.2mm

Diameter:7mm

Height:21.4mm

Length of Terminal 5.1mm

Width of Terminal 0.5mm

Quantity of Terminals 2

Setup ModeVertical Plug-in

Color of Key :Red

Lock Mechanism Lockless

UsesInstrument,Meter,Household Appliances,

Rating 6A 250VAC/10A 125VAC T85

10A 250VAC T85

10A 250VAC 1/2HP 250VAC

15A 125VAC 1/3HP 125VAC

Contact resistance 50

Insulation resistance 100

Withstand voltage 1500VAC/1min

Switching life 10000cycles

Our Advantage

1) RoHS compliant

2)Used for home appliance

3)Machining as you required

4)Sed in many places of electric devices

5)The wires are UL, CSA, CCC or VDE certificated

6)The connectors could be AMP. Molex, JST or other suppliers as the requirements of customers

7)we can make according your samples, drawings, pictures or photos
